Description
FARO Scanplan 2d, an innovative, handheld device that dramatically speeds up the process of capturing 2D floor plans. It is an ideal tool for anyone who needs to quickly obtain as-built floor plans of buildings for threat assessment, pre-incident planning, and fire protection engineering, 2D as-built documentation, or optimal scan job planning. Use the ScanPlan to document floor plans of buildings large and small, including houses, schools, shopping malls, public venues, office buildings, construction sites, and more.
FARO Scanplan 2d Specifications
|
General |
|
| Height | 25.5 cm |
| Depth | 21.5 cm |
| Width | 13 cm |
| Total Weight | 1.5 kg |
|
Scanning Characteristics |
|
| Max. Range | 20 mm |
| 3D measurement accuracy [mm] | <3m, ±3cm | >3m, less than 1.5% |
| Laser Class | 1 |
| Max. horizontal field of view | 230 deg |
| Scanning Speed | Frame rate 40 Hz |
| wavelength light source | 905 nm |
| Data aquisition speed | 28,800 points/second |
| Calibration | Maintenance/Calibration not necessary |
| Max. vertical field of view | 230 deg |
|
Power |
|
| Battery type | 19 V external – 14.4 V internal |
| Scan time per battery | 2 h |
|
Functionality |
|
| Software name | FARO Zone Viewer (free), SCENE 2go, SCENE WebShare Cloud, Present4D (fee required) |
| Other Formats | Can be exported in external medium PDF, DXF, PNG, ESRI Shape file, 2D Floor plan as Point Cloud: CPE, PLY, XYZ, JPEG, TIFF, DWG by using FARO Zone 2D |
| Real time visualization during scanning | Y |
|
Application |
|
| Main users | Android/iOS |
| Main applications | 2D as-built documentation, Scan job planning, Documentation of construction sites, Public Safety |
|
More information |
|
| Distinguishable features | Internal SSD of 100GB, High Dynamic Range, |
|
Connectivity and Sensors |
|
| USB Port | Y |
| WiFi | Y |
| Other Sensors and Ports | USB to USB, via USB on GUI of the smartphone, Flash drive/external medium |
|
Operation Characteristics |
|
| Operating temperature: min. | -10 °C to 40 °C |
| Operating temperature: max. | 60 °C |
| Humidity range [%] | non-condensing |
Check also Faro Fous S70 3D Laser Scanner
Product Details – FARO Scanplan 2d
- Manufacturer: Faro
- Model: Scanplan 2d
- Condition: Used, in great working condition and ready to use

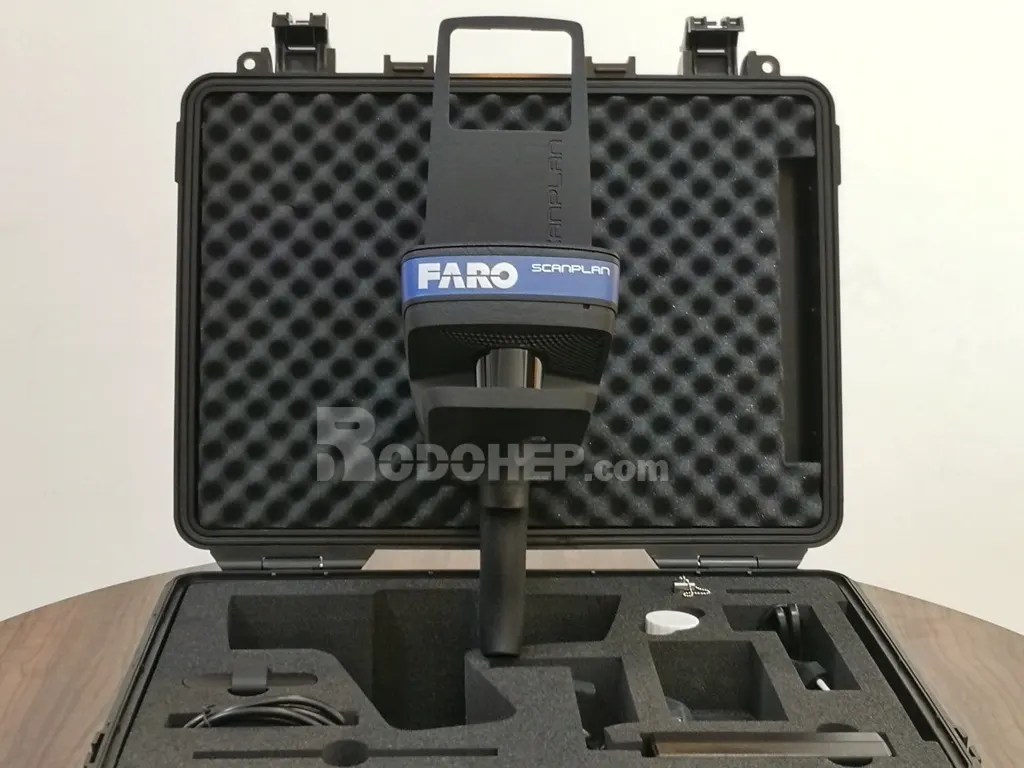

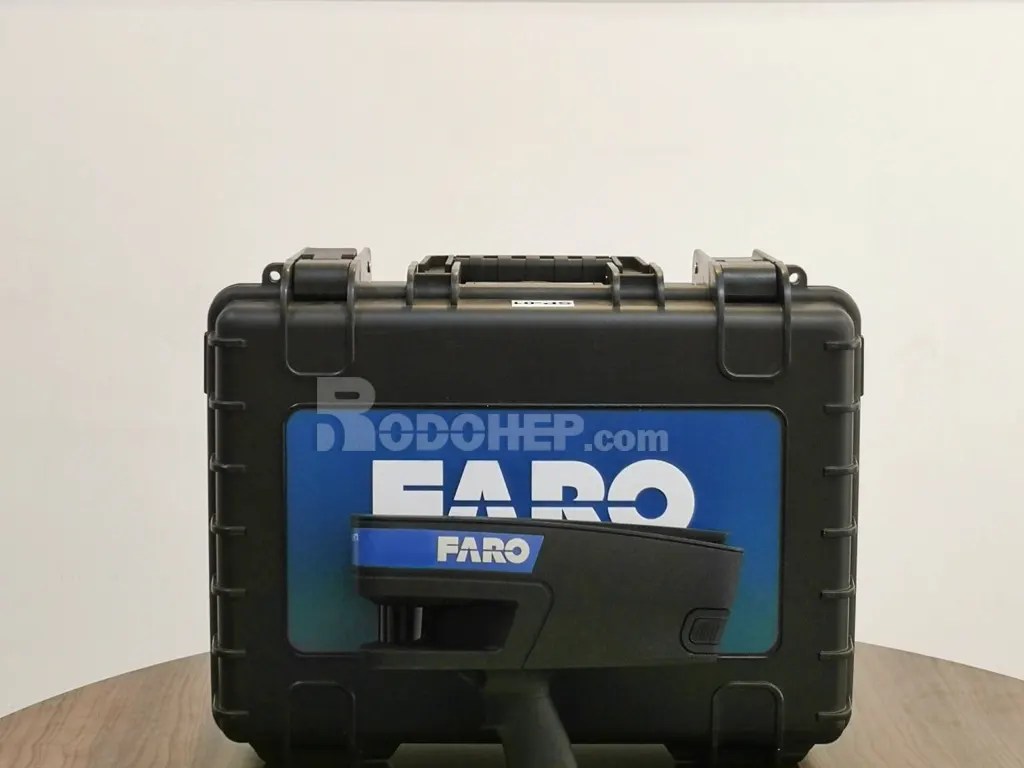

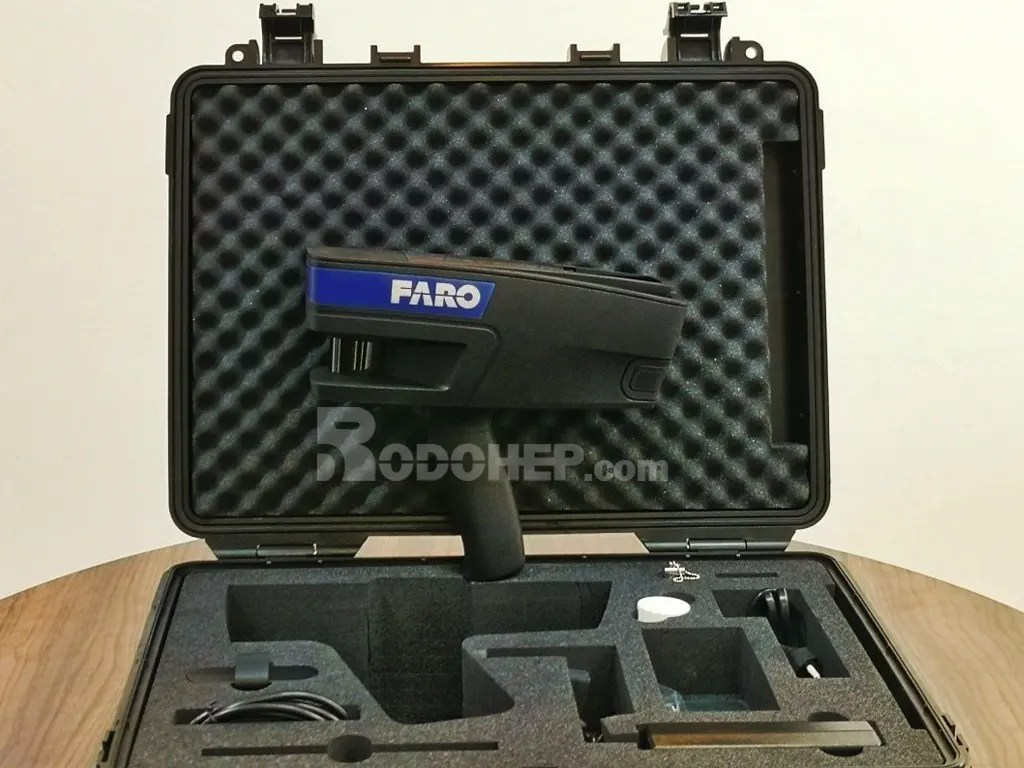

- What’s in the box: Baterry, Power Cords for charging, USB Transfer Cable, Hex Key Tool, FARO Zone 2D USB Stick, Metalic Stickers, Magnetic Charging Adaptor, Shock-proof Case, Accessories and Tools
