Description

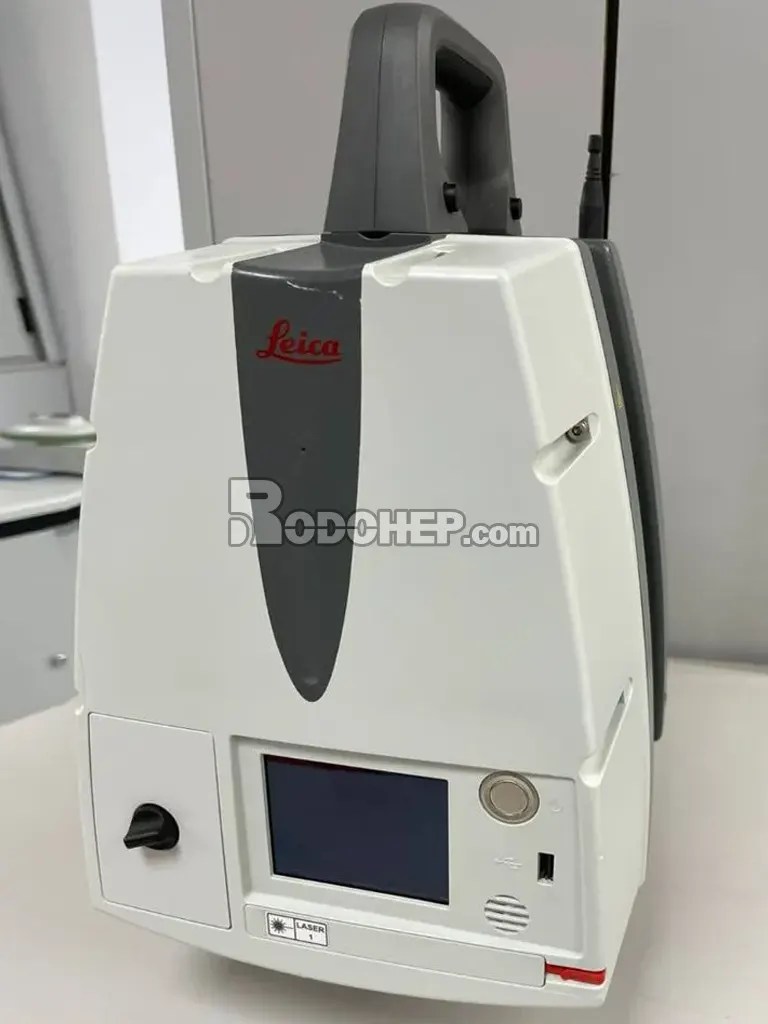

Leica ScanStation P50 is the fastest and safest, long range 3D laser scanner. Unlike any other laser scanner, the P50 solution maximises productivity by scanning inaccessible places at a safe position on site, reducing time in the field with less setups.
As part of the Leica Geosystems 3D Reality Capture solution, the Cyclone FIELD 360 app links the 3D data acquisition in the field with the ScanStation P50 laser scanner and final data registration in the office with Cyclone REGISTER 360. One-site, users can now automatically capture, register and examine scan and image data.
Leica P50 delivers:
- Highest quality 3D data and HDR imaging
- Extremely high-speed scan rate of 1 mio points per second
- Ranges of up to 1 kilometre
- Low range noise
- Survey-grade dual-axis compensation
Check also Faro Focus S150 3D Scanner
Leica ScanStation P50 Specifications
| SYSTEM ACCURACY | ||
| Accuracy of single measurement * | ||
| Range accuracy | 1.2 mm + 10ppm over full range (120 m / 270 m mode) 3 mm + 10ppm over full range (570 m / >1 km mode) | |
| Angular accuracy | 8” horizontal; 8” vertical | |
| Target acquisition ** | 2mm standard deviation at 50m | |
| Dual-axis compensator | Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1”, dynamic range ±5’, accuracy 1.5” | |
| DISTANCE MEASUREMENT SYSTEM | ||
| Type | Ultra-high speed time-of-flight enhanced by Waveform Digitising (WFD) technology | |
| Wavelength | 1550nm (invisible) / 658nm (visible) | |
| Laser class | 1 (in accordance with IEC 60825:2014) | |
| Beam divergence | < 0.23mrad (FWHM, full angle | |
| Beam diameter at front window | ≤ 3.5mm (FWHM) | |
| Range and reflectivity | Minimum range 0.4 m | |
| Maximum range mode | Reflectivit | |
| 120 m | 8% | |
| 270 m | 34% | |
| 570 m | 60% | |
| >1 km | 80% | |
| Scan rate | Up to 1,000,000 points per second | |
| Range noise * | 0.4mm rms at 10m
0.5mm rms at 50m |
|
| POWER | ||
| Power supply | 24 V DC, 100 – 240 V AC | |
| Battery type | 2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable) | |
| Duration | Internal > 5.5h (2 batteries)
External > 7.5h (room temp.) |
|
| PHYSICAL | ||
| Scanner
Dimensions (D×W×H) Weight |
238mm × 358mm × 395mm / 9.4” × 14.1” × 15.6” 12.25kg / 27.0lbs, nominal (w/o batteries) | |
| Battery (internal)
Dimensions (D×W×H) Weight |
40mm × 72mm × 77mm / 1.6” × 2.8” × 3.0” 0.4kg / 0.9lbs | |
| Mounting | Upright or inverted | |
Product Details – Leica ScanStation P50
- Manufacturer: Leica
- Model: P50
- What’s in the box: Leica ScanStation P50 Laser Scanner, Transport Box, Tribrach without Optical Plummet, Li-Ion Battery, Single Charger, Data Cable, Scanner Height Meter, Distance Holder for Height Meter, Quick Guide, System USB Stick, 1 year CCP Basic Contract
