Description
Leica RTC360 3D reality capture solution empowers users to document and capture their environments in 3D. Improving efficiency and productivity in the field and in the office through fast, simple-to-use, accurate, and portable hardware and software. The RTC360 3D laser scanner is the solution for professionals to manage project complexities with accurate and reliable 3D representations and discover the possibilities of any site.
Leica RTC360 Specifications
| 3D Laser Scanner | High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real time registration |
| Data acquisition | < 2 min for complete full dome scan and spherical HDR image at 6mm @ 10m resolution |
| Real time registration | Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit |
| Double scan | Automatic removal of moving objects |
| Distance measurement | High-speed, high dynamic time of flight enhanced by Waveform Digitizing (WFD) technology |
| Laser Class | 1 (in accordance with IEC 60825-1:2014), 1550nm (invisible) |
| Field of view | 360° (horizontal) / 300° (vertical) |
| Range | Min. 0.5 – up to 130 m |
| Speed | Up to 2‘000‘000 pts / sec |
| Resolution | 3 user selectable settings (3/6/12mm @ 10m) |
| Accuracy * | Angular accuracy 18”
Range accuracy 1.0 mm + 10 ppm 3D point accuracy 1.9 mm @ 10 m 2.9 mm @ 20 m 5.3 mm @ 40 m |
| Range noise * ** | 0.4 mm @ 10 m, 0.5 mm @ 20 m |
| Camera | 36 MP 3-camera system captures
432 MPx raw data for calibrated 360° x 300° spherical image |
| Speed | 1 minute for full spherical HDR image at any light condition |
| HDR | Automatic, 5 brackets |
| Visual Inertial System | Video enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time |
| Tilt | IMU based, Accuracy: 3‘ for any tilt |
| Additional sensors | Altimeter, Compass, GNSS |
| On scanner | Touch-screen control with finger touch, full color WVGA graphic display 480 x 800 pixels |
Specifications
| Mobile devices | Leica Cyclone FIELD 360 app for iPad or Android tablets including: – Remote control of scan functions – 2D & 3D data viewing – Tagging – Automatic alignment of scans |
| Wireless | Integrated wireless LAN (802.11 b/g/n) |
| Data storage | Leica MS256, 256GB exchangeable USB 3.0 flash drive |
| Housing | Aluminium frame and sidecovers |
| Dimensions | 120mm x 240mm x 230mm / 4.7‘‘ x 9.4‘‘ x 9.1 |
| Weight | 5.35 kg / 11.7 lbs, nominal (w/o batteries) |
| Mounting mechanism | Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter / survey tribrach adapter available |
| Internal battery | 2 x Leica GEB361 internal, rechargeable Li-Ion batteries. Duration: Typically up to 4 hours Weight: 340 g per battery |
| External | Leica GEV282 AC adapter |
| Operating temperature | 5° to +40° C |
| Storage temperature | 40° to +70° C |
| Operating low temperatures **** | 10° to +40°C |
| Dust/Humidity *** | Solid particle/liquid ingress protection IP54 |
Check also Faro Fous S70 3D Laser Scanner
Product Details – Leica RTC360
- Manufacturer: Leica
- Model: RTC360
- Condition: Used, in great working condition and ready to use

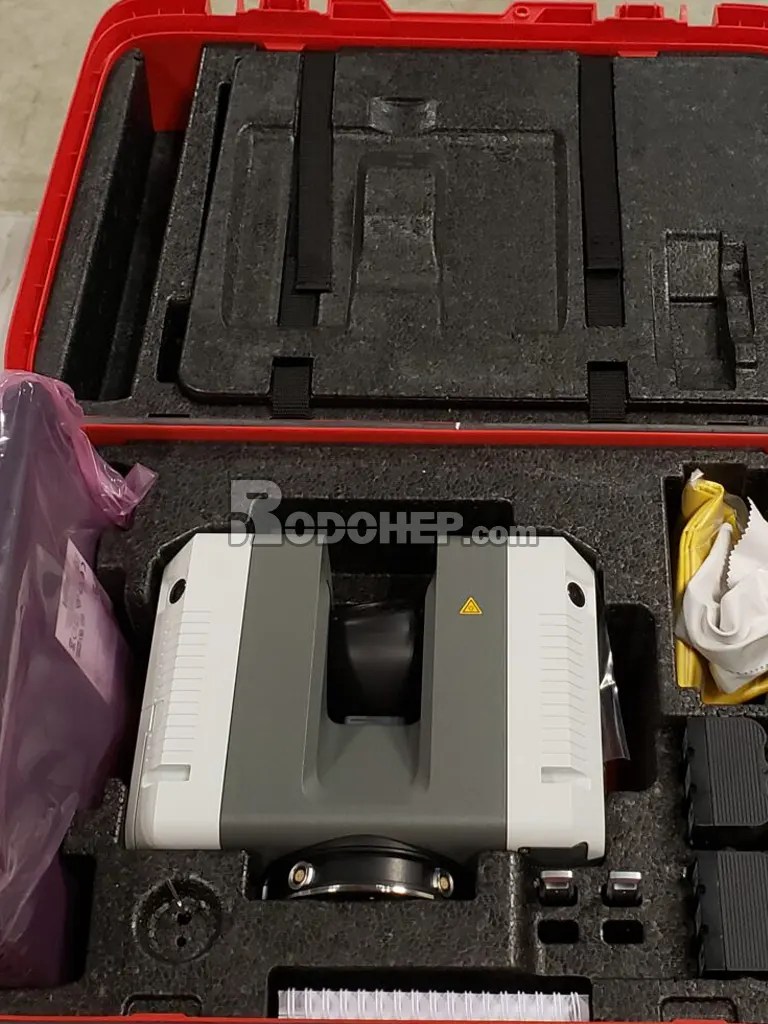

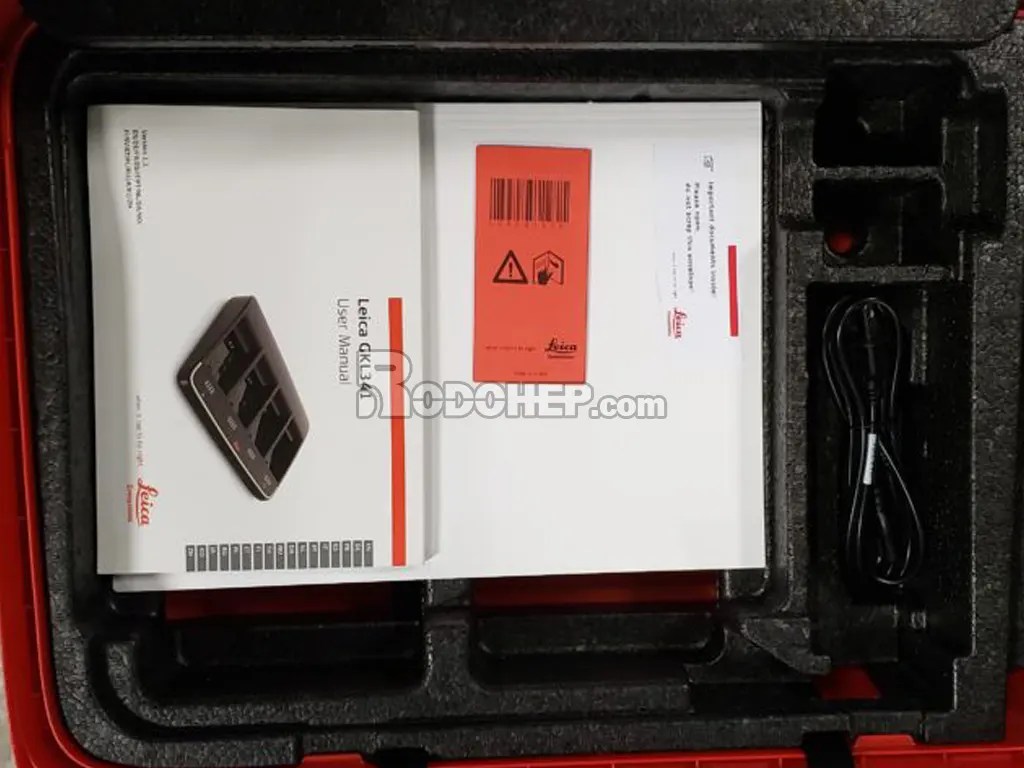

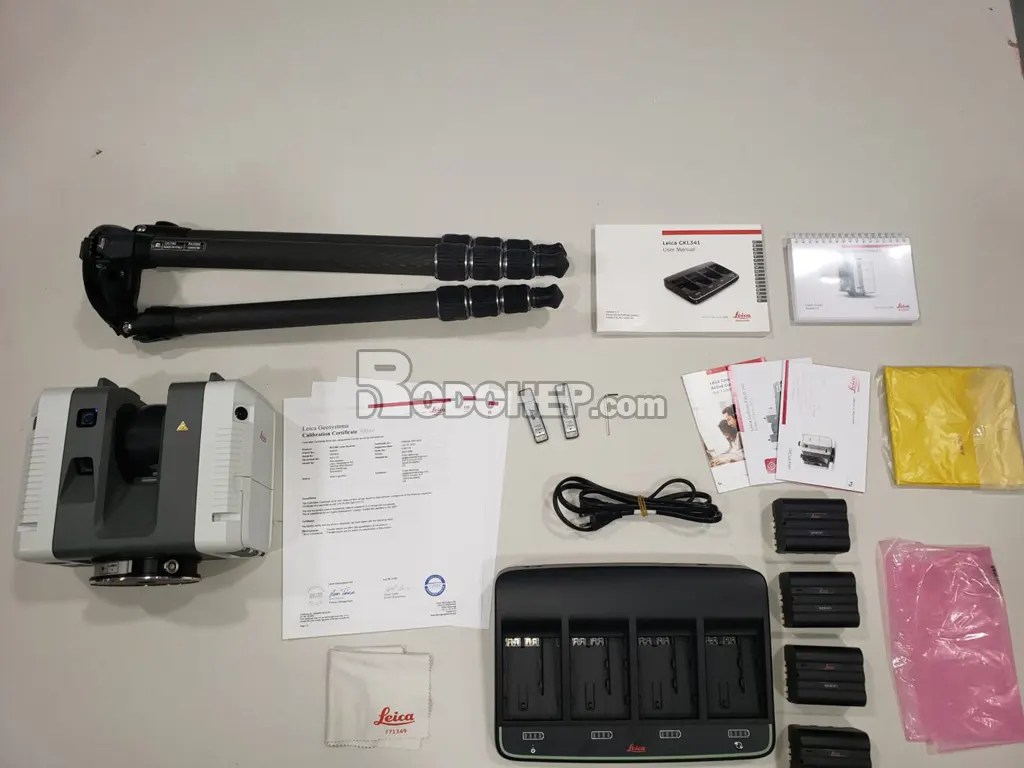

- What’s in the box: GVP730 hard carrying case, GEB361 batteries (4), GKL341 Multicharger Pro, Flash Drive- 256GB (2), System USB Card, GST80 Lightweight Tripod, Quick Guide, GAD122 Adapter, Rain Cover, 1 year RTC360 CCP Basic (Customer Care Package)
