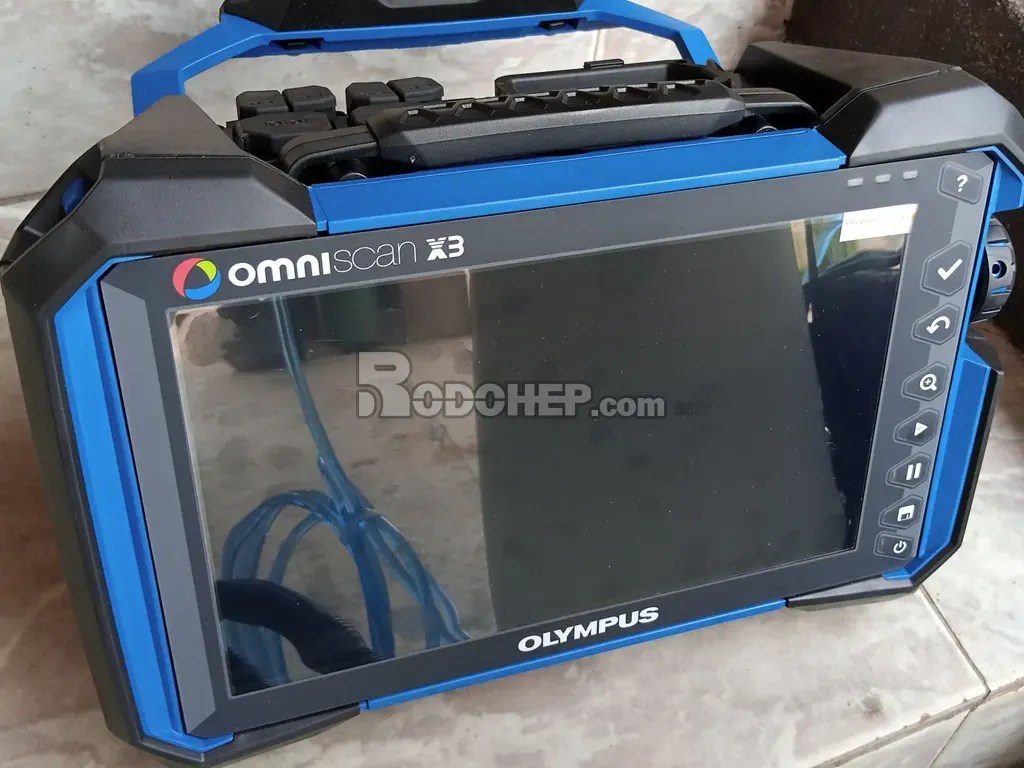

OLYMPUS OMNISCAN X3 get the Most Out of Your Inspection. OmniScan flaw detectors have long been recognized as the workhorse of phased array weld inspection. The X3 flaw detector is even better with setup, imaging, and analysis tools that make weld inspection easier.
- Do your complete setup on the instrument without having to use a PC
- Improved fast calibration
- Enhanced image resolution and geometrically correct flaw representation with multiple group total focusing method (TFM) images
- Standard PR configuration enables the use of larger apertures on dual array probes
Features:
- IP65 certified rain and dust proof
- 25 GB maximum file size
- 800% high amplitude range
- 2X as fast as the OmniScan MX2 flaw detector
- 1,024 × 1,024 grid resolution
The OmniScan X3 flaw detector excels at a broad range of weld inspection applications, including:
- In-service and construction welding
- Pressure vessels
- Process pipes
- Boiler tubes
- Pipeline
- Wind tower
- Structural construction
- Corrosion-resistant alloys and cladded materials (austenitic, nickel, and other coarse-grained materials)
Check also Olympus Omniscan SX PA 16:64 Flaw Detector
OLYMPUS OMNISCAN X3 Specifications
| Size (W × H × D) | 335 mm × 221 mm × 151 mm (13.2 in. × 8.7 in. × 5.9 in.) | |
| Weight | 5.7 kg (12.6 lb) (with 1 battery) | |
| Onboard Storage | 64 GB internal SSD storage, extendable as needed with an external USB drive; 25 GB maximum file size | |
| Storage Devices | SDHC™ and SDXC™ cards or most standard USB storage devices | |
| GPS | Yes (unless specified otherwise for some regions) | |
| Alarms | 3 | |
| Wireless Connection | Yes (wireless LAN dongle included in the package) | |
| Connectors | 1 PA connector, 2x UT channels (2 P/R connectors each) | |
| Number of Groups | 8 groups (16:128PR and 32:128PR); 16:64PR offers either 2 groups (PA, UT, or TFM) or 2PA + 1 UT | |
| Certifications | ISO 18563-1:2015 ISO 22232-1:2020 | |
|
Display |
||
| Type | TFT LCD with resistive touch screen | |
| Size | 269 mm (10.6 in.) | |
| Resolution | 1280 × 768 pixels | |
|
Inputs and Outputs |
||
| Ports | 2 USB ports (one hidden behind the battery), 1 USB 3.0, HDMI video output, SDHC memory card, and Ethernet communication port | |
| Encoder | 2-axis encoder line (quadrature or clock/direction), 3rd encoder ready | |
| Digital Input | 6 digital inputs, TTL (enabling acquisition ON/OFF) | |
| Digital Output | 5 digital outputs, TTL | |
| Power Output Line | 5 V nominal, 1 A (short-circuit protected), and 12 V output at 1 A | |
|
External DC Supply |
||
| DC-IN Voltage | 15 VDC to 18 VDC (min. 50 W) | |
| Connector | Circular, 2.5 mm pin diameter, center-positive | |
|
Battery |
||
| Type | Lithium-ion battery | |
| Capacity | 93 Wh | |
| Number of Batteries | 2 | |
| Life | 5 hours using 2 batteries (hot-swap capable) | |
|
PA/UT Configuration |
||
| Frequency | Effective Digitizing Frequency | Up to 100 MHz |
| Max PRF | 20 kHz | |
| Display | Refresh Rate | A-scan: 60 Hz; S-scan: 20 Hz to 30 Hz |
| Envelope (Echo Dynamic Mode | Yes: Volume-corrected S-scan (30 Hz) | |
| A-Scan Height | Up to 800% | |
Product Details – OLYMPUS OMNISCAN X3
- Manufacturer: Olympus
- Model: OMNISCAN X3
- Condition: Used, in great working condition and ready to use
- What’s in the box: Li-ion battery, Anti glare screen protector, DC power adaptor, Power cord, Microfiber cloths, USB key (16 GB), Wireless LAN dongle, USB flash drive (contains Instrument software, Getting Started Guide, User’s Manual, Software User’s Manual), Travel Case
