Description

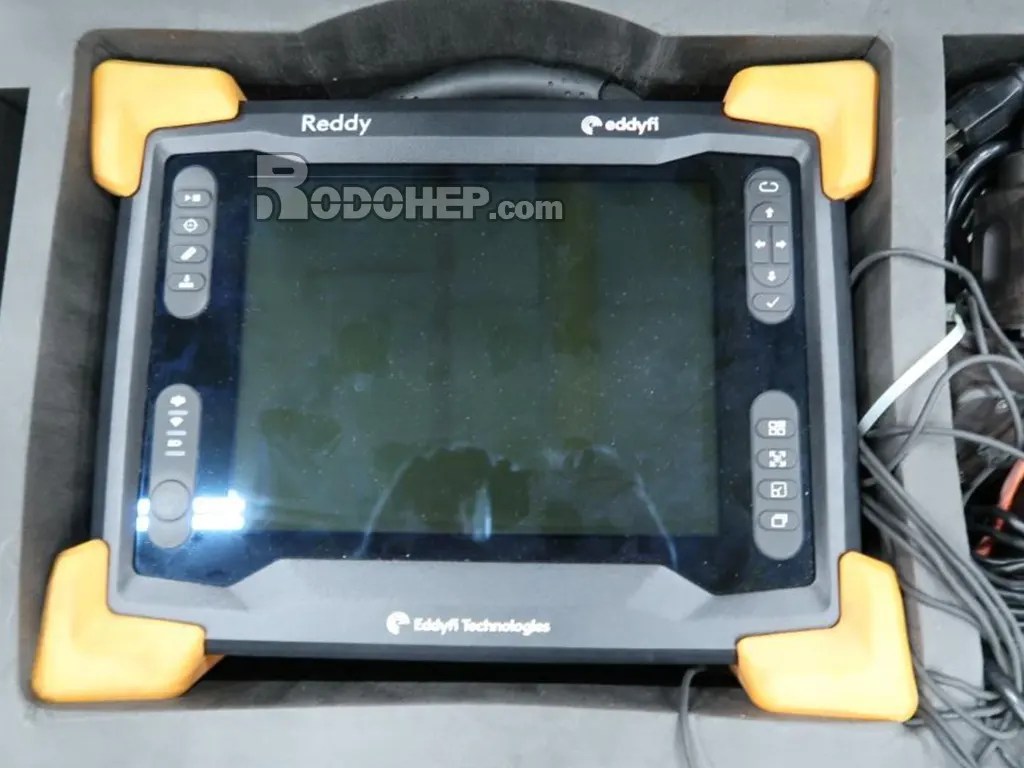

Eddyfi Reddy 32 NDT System is the best portable instrument for rapid crack and corossion assessment. A modern, rugged, portable, and high-performance multi-technology instrument providing intuitive C-Scan imaging through a user-friendly interface.
Embedded software Eddyfi Reddy 32 NDT
Reddy runs Magnifi GO, powerful, yet easy-to-use acquisition and analysis software. It’s especially tailored for surface inspections and relies on well-designed wizards to create setups. Furthermore, Magnifi GO makes collecting and reporting data incredibly intuitive.
Eddyfi Reddy 32 NDT Desktop data analysis
Magnifi GO is compatible with its full-fledged big brother Magnifi R. With it, configure inspection setups for Reddy and analyze inspection data in depth directly on your computer, with full 3D C-scan capabilities.
Check Also Bruker S1 Titan
The right probe for the right application – Eddyfi Reddy 32 NDT
Eddyfi Reddy standard surface array probes are all engineered for ferrous and non-ferrous materials, as well as a variety of applications in the oil & gas, power generation, and aerospace industries.
Eddyfi Reddy 32 NDT SPECIFICATIONS
| Â
GENERAL |
|
| Dimensions (W×H×D) | 355×288×127 mm (14.0×11.3×5.0 in) |
| Weight With batteries | 6.6 kg (14.5 lb) |
| Weight  Without batteries | 5.7 kg (12.5 lb) |
| Volume | 13 L (791 in3) |
| Power requirements | 100–240 VAC, 50–60 Hz |
| Power supply | Direct VAC or onboard batteries |
| Batteries Type | Li-ion, rechargeable, DOT compliant |
| Batteries Typical life | 6–8 hours |
| Display | 26.4 cm (10.4 in) |
| Video output | HDMI |
| Storage | SSD, 100 GB |
| Cooling | Sealed and fanless |
| Encoders | 2 axes, quadrature |
| Connectivity
|
Gigabit Ethernet, Wi-Fi, Dual Mode
Bluetooth® 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE), USB 2.0 (×3) |
| Probe recognition and setup | Automatic |
| Â
ECA/ECT |
|
| Channels
|
ECA: SmartMUX 32, 64, or 128
ECT: 4 MFL: 32, 64 or 128 |
| Frequency range (ECA, ECT) | 5 Hz–10 MHz |
| Frequencies | ECA: 2 simultaneous
ECT: 4 simultaneous |
| Array Connector | 160-pin |
| ECT connector | 19-pin Fischer |
| I/O connector | 12-pin Fischer |
| Generator output / Coil drive | Up to 20 Vpp |
| Injection modes | Multiplexed, simultaneous, continuous |
| Receiver gain | 41 dB range, 23–64 dB |
| Data resolution | 16 bits |
| Acquisition / Sampling rate | Up to 50 000 samples/s |
| Â
ENVIRONMENTAL |
|
| IP rating | Designed for IP65 |
| Operating temperature | 0–40°C (32–104°F) |
| Operating humidity | 95%, non-condensing |
| Compliance
|
ASME, EN 61010-1, CE, WEEE, FCC
Part 15B, ICES-003, AS/NZS CISPR 22, RoHS |
Product Details
- Manufacturer: Eddyfi
- Model: Reddy
- Condition: Used, in great working condition and ready to use

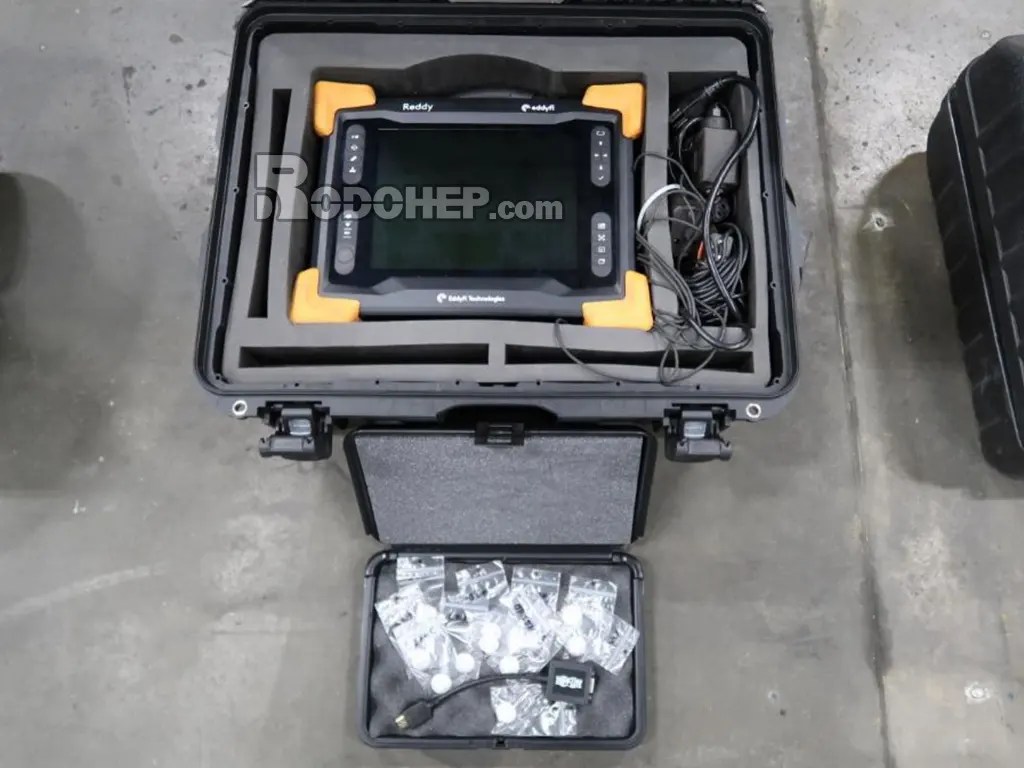

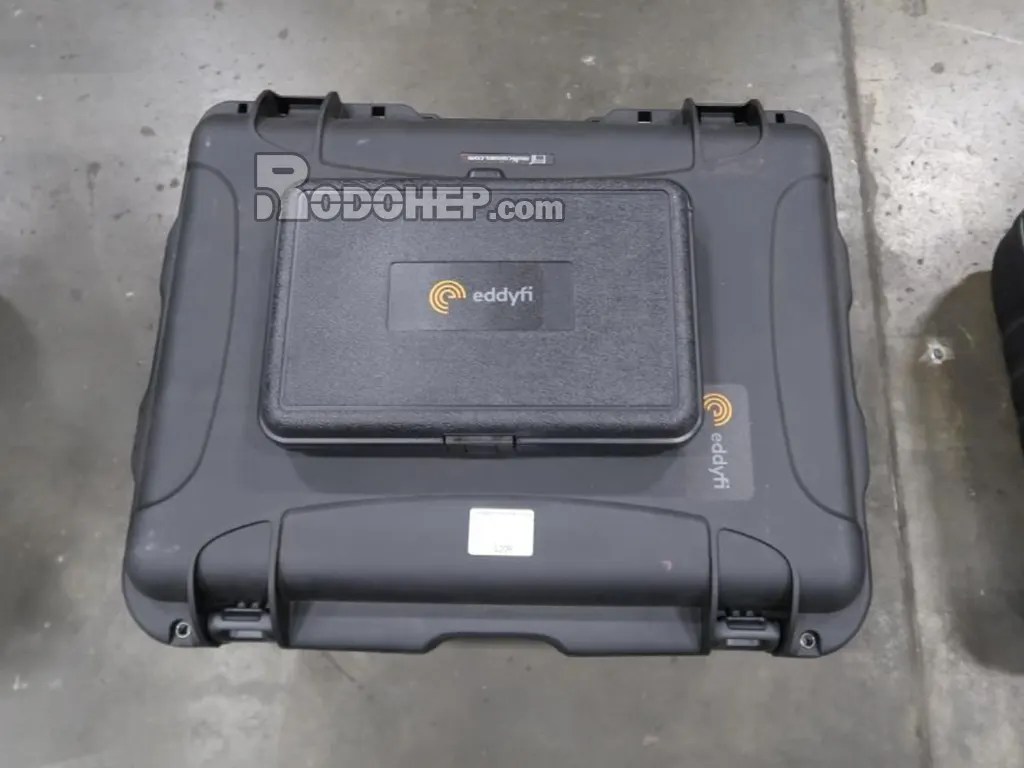

- What’s in the box: CUS-ENC-HEXP-LSRW, CUS-RB-HEXP-LSRW-001, Charging cable, carrying case
