Description

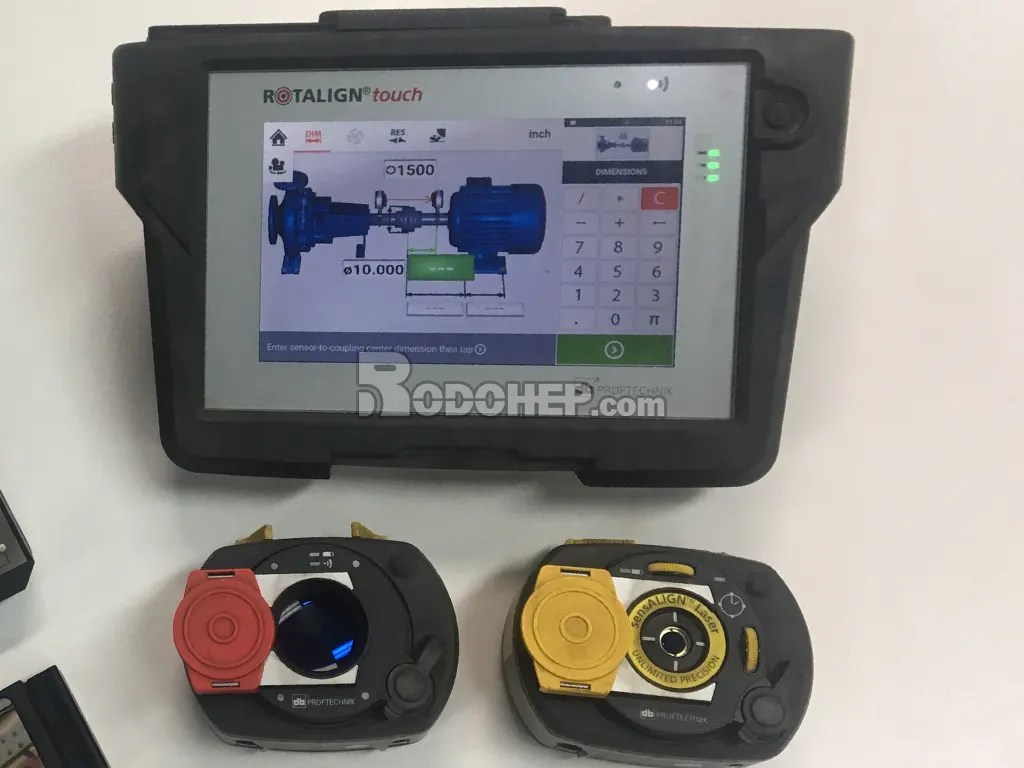

Pruftechnik Rotalign Touch is the first laser shaft alignment system on the market to combine high precision on-site measuring tasks and cloud connectivity for worldwide data access and transfer. It features the unique sensALIGN 7 laser and sensor heads offering a full range of everyday alignment routines up to expert degree alignment jobs – such as cardan shaft alignment or coupling alignment.
Features:
- Intelligent measurement modes including uncoupled intelliPASS and intelliPOINT
- Cardan shaft alignment with cardan in place
- Vertical machine alignment with vertiSWEEP continuous measurement mode
- Softfoot diagnostics
- Live Trend
- Horizontal and Vertical move simulator
- Measurement table including different alignment jobs
- Machine train with real 3D machines
- Real time Intelligent measurement quality
- Customized tolerances (even asymetrical)
Check also Pruftechnik Rotalign Ultra IS Laser Shaft Alignment
Pruftechnik Rotalign Touch Specifications
| CPU | Processor: 1.0 GHz quad core ARM®Cortex-A9
Memory: 2 GB RAM, 1 GB Internal Flash, 32 GB SD-Card Memory |
| Display | Technology: Projective capacitive multi-touch screen Type: Transmissive (sunlight-readable) backlit TFT color graphic display Optically bonded, protective industrial display, integrated light sensor for automated adjustment of the brightness to the display Resolution: 800 x 480 Pixel Dimensions: 178 mm (7”) diagonal |
| LED indicators
|
3 LEDs for battery status, 1 LED for WiFi communication |
| Power supply
|
Operating time: 12 hours typical use (based upon an operating cycle of 25% measurement, 25% computation, 50% ‘sleep’ mode) Battery: Lithium-ion rechargeable battery 3.6 V / 80 Wh AC adapter/charger: 12 V / 36 W; standard barrel connector (5.5 x 2.1 x 11 mm) |
| Environmental protection
|
IP 65 (dustproof and water jets resistant) – as defined in regulation DIN EN 60529 (VDE 0470-1), shockproof Relative humidity: 10% to 90% |
| Drop test
|
1 m (3 1/4 ft) |
| Temperature range
|
Operation: 0°C to 40°C (32°F to 104°F) Charging: 0°C to 40°C (32°F to 104°F) Storage: -10°C to 50°C (14°F to 122°F) |
| Dimensions | Approx. 273 x 181 x 56 mm (10 3/4” x 7 1/8” x 2 3/16”) |
| Weight | Approx. 1.88 kg (4.1 lbs) |
| Camera | 5 MP built-in (depending on configuration) LEDs: Risk Group 1 according to IEC 62471:2006 |
| CE conformity | Refer to the CE compliance certificate in |
| FCC compliance
|
Requirements fulfilled (refer to the provided document ‘Safety and gen-eral information’) |
Product Details – Pruftechnik Rotalign Touch
- Manufacturer: Pruftechnik
- Model: Rotalign Touch
- Condition: Used, in great working condition and ready to use

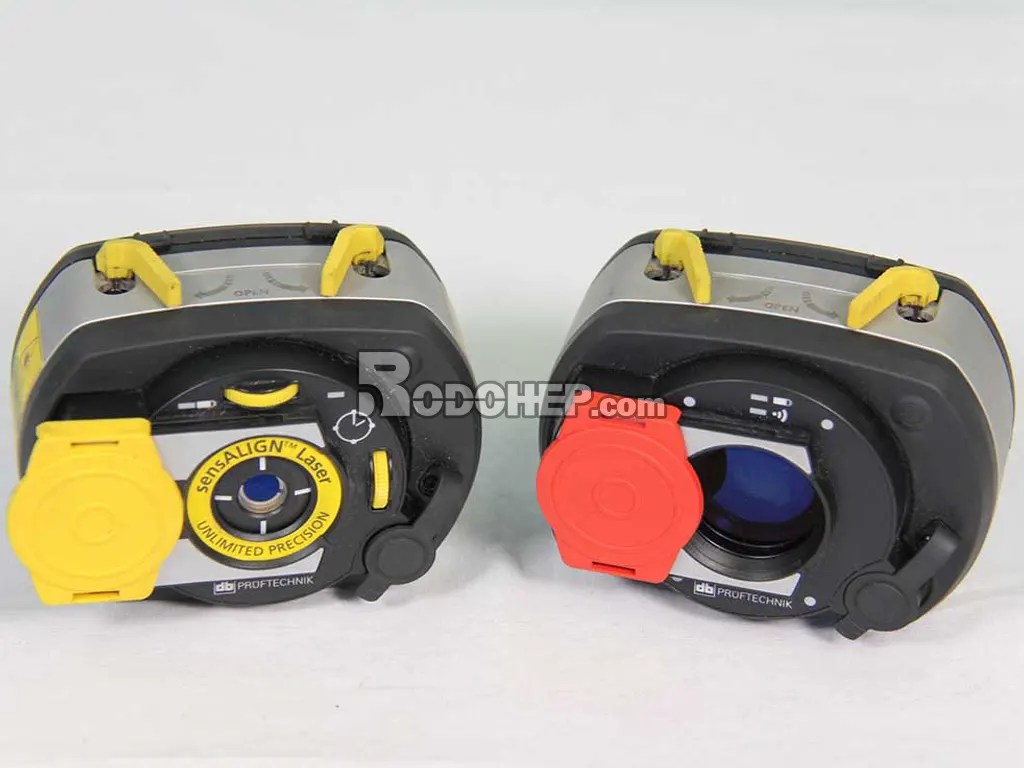

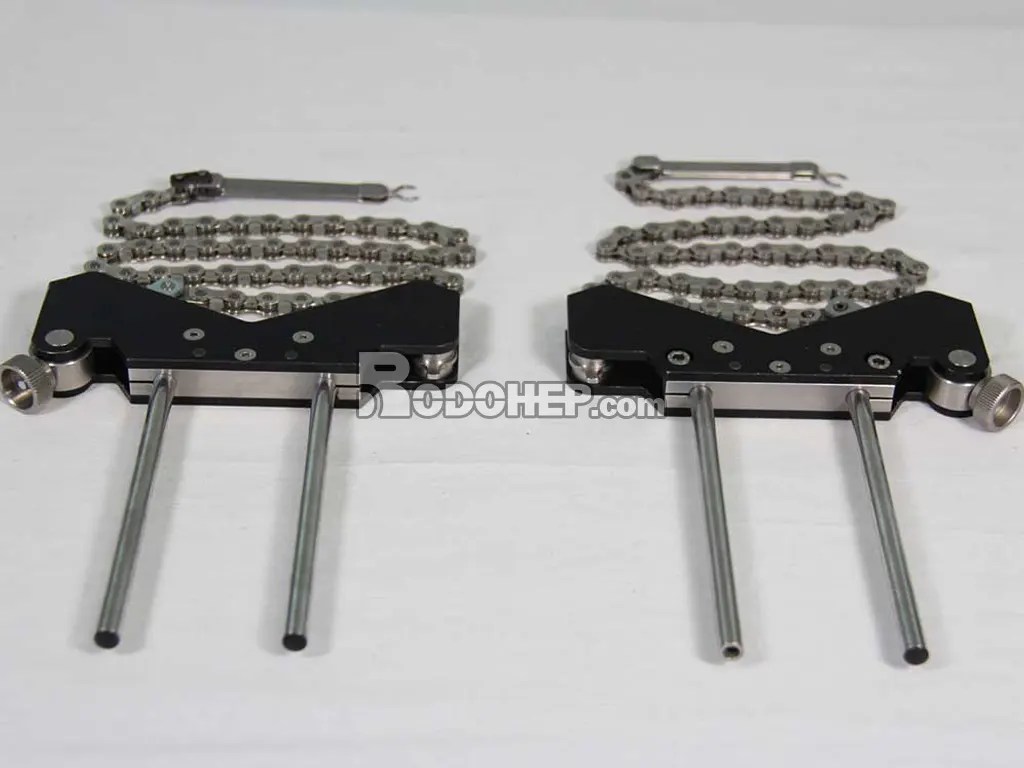

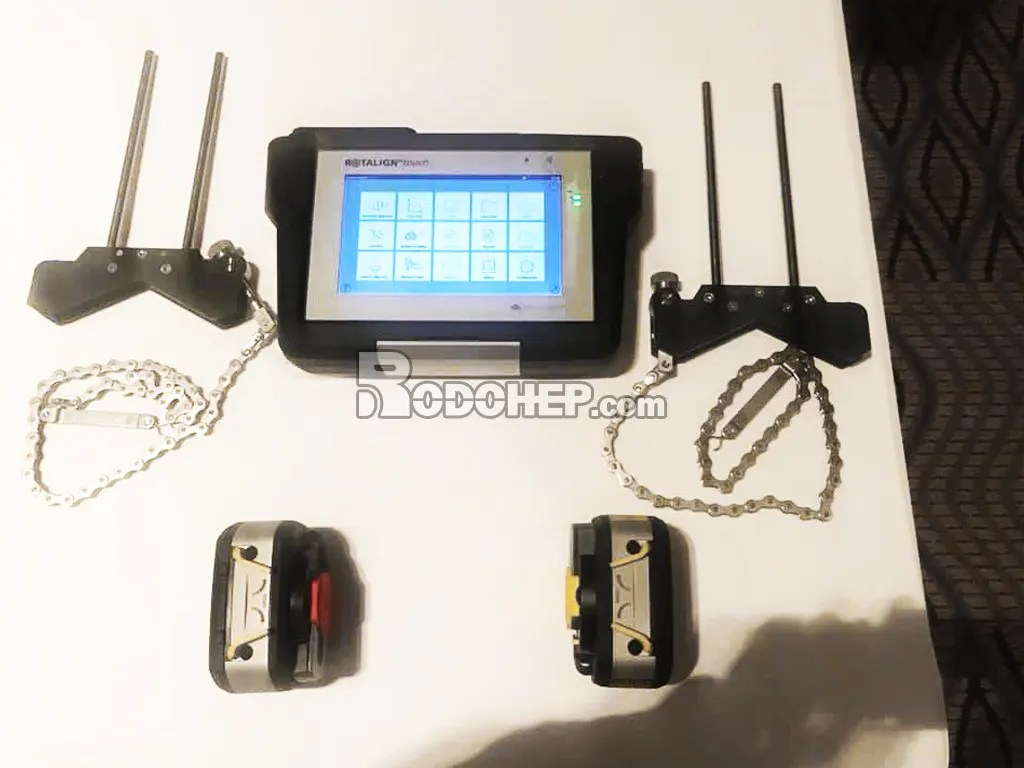

- What’s in the box: Rotalign SensALIGN Laser, Rotalign SensALIGN Receiver, (2) Chain Brackets, Tape Measurer, Carrying Case
