Description
Trimble TX8 designed for performance, the Trimble TX8 enables you to complete 3D laser scanning projects faster than ever.
Performance:
- 1 million points per second with no compromise on scan quality or range
- Typical high density scan time of only 3 minutes
- Integrated HDR camera to colorize scans
- Easy to use onboard interface with no complex parameters
- Integrated WLAN for remote operation from any mobile device
- Robust design with IP 54 rating for demanding environments
- Upgradeable from 120m standard to 340 meter extended range
Applications:
- Civil engineering
- Surveying
- Plant and industrial measurement
- Mining and quarries
- Urban areas
- Preservation and restoration
- Building and commercial construction
- Deformation monitoring
- Quality control
- Public safety and forensics
Check also Trimble TX6 3D Laser Scanner
Trimble TX8 Specifications
| PHYSICAL | |
| Dimensions | 335 mm W x 386 mm H x 242 mm D
(13.2 in W x 15.2 in H x 9.5 in D) |
| Weight | 10.7 kg (23.6 lb) with tribrach and no battery
11.2 kg (24.7 lb) with tribrach and battery |
| Power supply | 76 mm W x 43 mm H x 130 mm D
(3.0 in W x 1.7 in H x 5.1 in D Weight: 0.66 kg (1.46 lb) |
| Battery dimensions | 89.2 mm W x 20.1 mm H x 149.1 mm D
(3.5 in W x 0.8 in H x 5.9 in D) |
| Battery weight | 0.46 kg (1 lb) |
| Power consumption | 72 W |
| Scan time per battery | >2 hours |
| Instrument case | 500 mm W x 366 mm H x 625 mm D
(19.7 in W x 14.4 in H x 24.6 in D) |
| ENVIRONMENTAL | |
| Operating temperature range
(non-condensing atmosphere) |
–0 °C to +40 °C (32 °F to 104 °F) |
| Storage temperature | –20 °C to +50 °C (–4 °F to 122 °F) |
| Operating humidity range | Non condensing |
| Lighting conditions | All indoor & outdoor conditions over entire range
(no lighting limitations) |
| Protection class | IP54 |
Product Details – Trimble TX8
- Manufacturer: Trimble
- Model: TX8
- Condition: Used

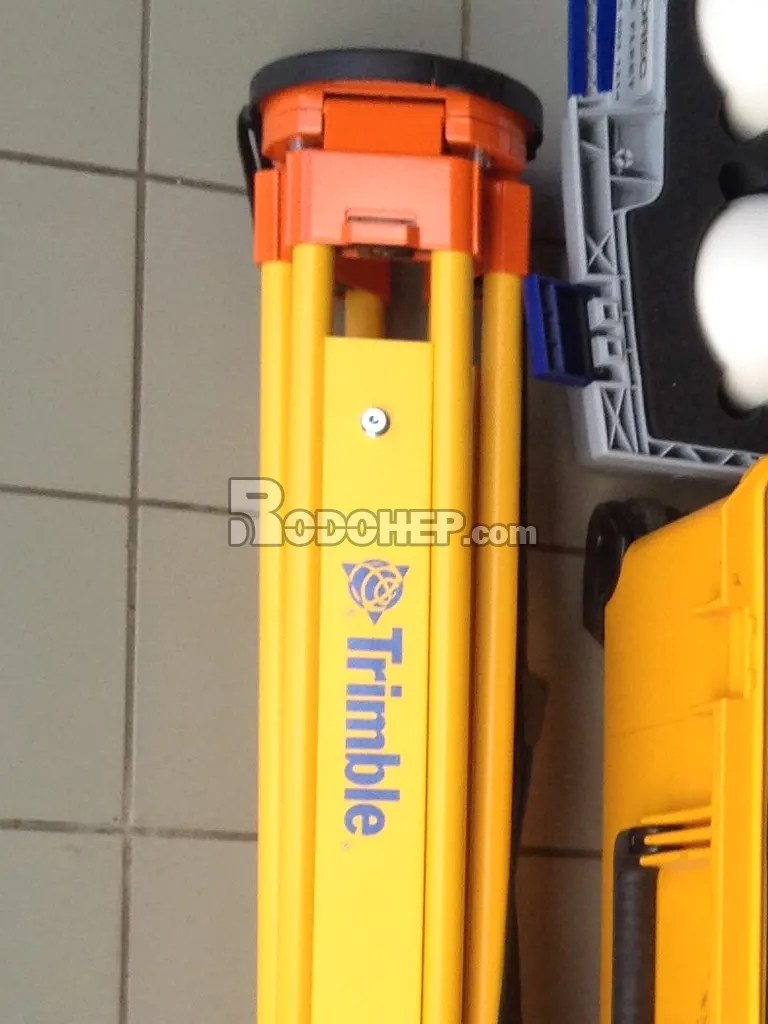

- What’s in the box: Trimble TX6, Professional tripod, 4 batteries, charger, AC power supply, Transport case, Adapter, 6 spheres, 64GB USB Flash Drive
