Description
Creaform HandySCAN 700 is an excellent product with a well-rounded, professional software suite. It is a professional handheld 3D scanner made by Creaform, a leading manufacturer from Canada. It was originally launched in 2014. As of 2022, the SILVER Series now boasts blue lasers instead of red ones.
This Creaform portable 3D scanner uses blue laser triangulation technology to 3D scan a wide variety of mechanical parts, mockups, and prototypes. It casts 7 blue laser crosses in “Cross grid” mode, and a single blue laser beam in “Single beam” mode to capture complex details and deep pockets.
This professional handheld 3D scanner suits various use cases, such as:
- Reverse engineering
- All steps of design and manufacturing processes
- Cultural heritage preservation
- Restoration
- Digital archiving
- Entertainment
Benefits of HandySCAN:
- The first and only handheld self-positioning 3D scanner that eliminates the need for fixed stands, bulky mechanical arms or external positioning devices, which virtually eliminates the possibility of scanning in hard-to-reach areas
- A unique object snap system that allows you to move the object during scanning and observe formation of the final surface in real time on the screen
- Includes software, at the output of which we have . STL file ready to be imported into 3D CAD program or printed on HandySCAN 3D 3D printer is:
- The fastest 3D scanner on the market: 25 times faster than previous generation scanners;
- Accurate measurements under real operating conditions;
- Virtually limitless possibilities of 3D-scanning, regardless of the size, complexity, material or color of the object;
- Easy and convenient scanning in any place necessary for you.
Check also Peel 2 CAD 3D Scanner
Creaform HandySCAN 700 Specifications
| Accuracy | Up to 0.030 mm (0.0012 in) |
| Volumetric accuracy | 0.020 mm + 0.060 mm/m (0.0008 in + 0.0007 in/ft) |
| Volumetric accuracy with MaxSHOT Next |Elite | 0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) |
| Measurement resolution | 0.050 mm (0.0019 in) |
| Mesh resolution | 0.200 mm (0.0078 in) |
| Measurement rate | 480,000 measurements/s |
| Light source | 7 blue laser crosses (+ 1 extra line) |
| Laser class | 2M (eye-safe) |
| Scanning area | 275 x 250 mm (10.8 x 9.8 in) |
| Stand-off distance | 300 mm (11.8 in) |
| Depth of field | 250 mm (9.8 in) |
| Part size range | 0.1–4 m (0.3–13 ft) |
| Software | VXelements |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf |
| Compatible software | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) |
| Weight | 0.85 kg (1.9 lb) |
| Dimensions (LxWxH) | 77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in) |
| Connection standard | 1 X USB 3.0 |
| Operating temperature range | 5-40 °C (41-104 °F) |
| Operating humidity range | 10-90% |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, in 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X |

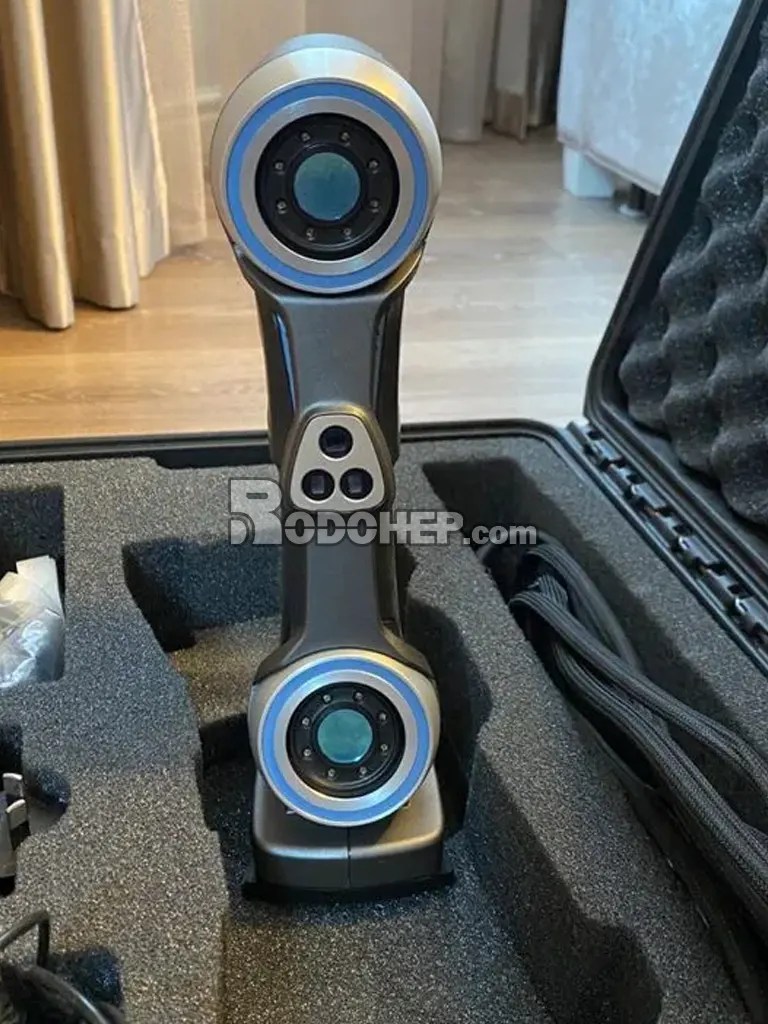

Product Details – Creaform HandySCAN 700
- Manufacturer: Creaform
- Model: HandySCAN 700
- Condition: Used, in great working condition and ready to use
- What’s in the box: Creaform HandySCAN 700, carrying case, VXelements software and the first year of after sales service program, Power supply, USB cable, Calibration plate, 2,000 positioning targets
