Description
Elvatech ProSpector 3 is the next-generation handheld X-ray fluorescence analyzer. It offers a new level of analysis accuracy, speed, and detection limits. ProSpector 3 is the smallest and lightest XRF gun on the market with an intuitive and user-friendly software interface. Unique processing algorithms allow analyzing in various fields of application: PMI, Alloys, Precious metals, Archeometry, Petrochemical, Soils, Plastics, Automotive catalysts etc.
Benefits:
- World’s fastest XRF analyzer (throughput above 500 000 cps – more than twice as fast as any other handheld XRF) – highest accuracy within the shortest measurement time, excellent precision
- World’s smallest (236 х 193 х 68 mm), and lightest (1.05 kg with a battery) handheld analyzer – easy to operate
- Dustproof and waterproof instrument body, with IP-67 ingress protection rating – ProSpector 3 can be operated even under water!
- Automatic collimator changer for small spot analysis of jewelry, welds etc.
- Folding display – for easy operation in the lab stand without connecting to a PC
- Highest mobility – up to 16 hours of autonomous operation on a single battery charge, hot battery swap
- Superior calibration stability, compensation of influence of ambient temperature and pressure variations – no need to spend time for calibration
- Two CCD cameras for macro- and micro- view
- Full compatibility with ElvaXTM PC software
- Radiation safety: proximity sensor and low count rate detection
Applications:
- PMI
- RoHS and Weee
- Precious metals
- Alloy
- Mining and Exploration
- Soil and sediment
- Environmental monitoring
- Scrap sorting
- Clays and Oxyde
- Lead in paint
- Car catalyst
- Archeometry
- Forensics
Check also Elvatech ProSpector 2 XRF Analyzer
Elvatech Prospector 3 Specifications
| Digital X-Ray Source digiX-50
|
|
| Anode | Rh, W |
| Voltage | 50 kV |
| Current | 200 uАmp |
| Power | 5 W |
| 8 positions filter changer | |
| 2 position collimator changer | |
| X-Ray Detector
|
|
| Type | Fast SDD |
| Area | 25 mm2 (option 70 mm2) |
| Energy resolution | <140 eV @ 5.9 keV |
| Count rate | 500,000 cps |
| Electronics
|
|
| DPP | proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate |
| MCA | 4096 channels |
| Display | 4.3″ |
| Connectivity | USB, Bluetooth, Wi-Fi |
| 2 high-resolution video cameras | |
| General
|
|
| Dimensions | 236 х 193 х 68 mm |
| Weight | 0.82 kg, 1.05 with battery kg |
| Protection | IP67 |
| Software
|
|
| Operating system | Windows EC7 |
| Analysis algorithms | Fundamental parameters (FPA), Empirical (regression) calibrations |

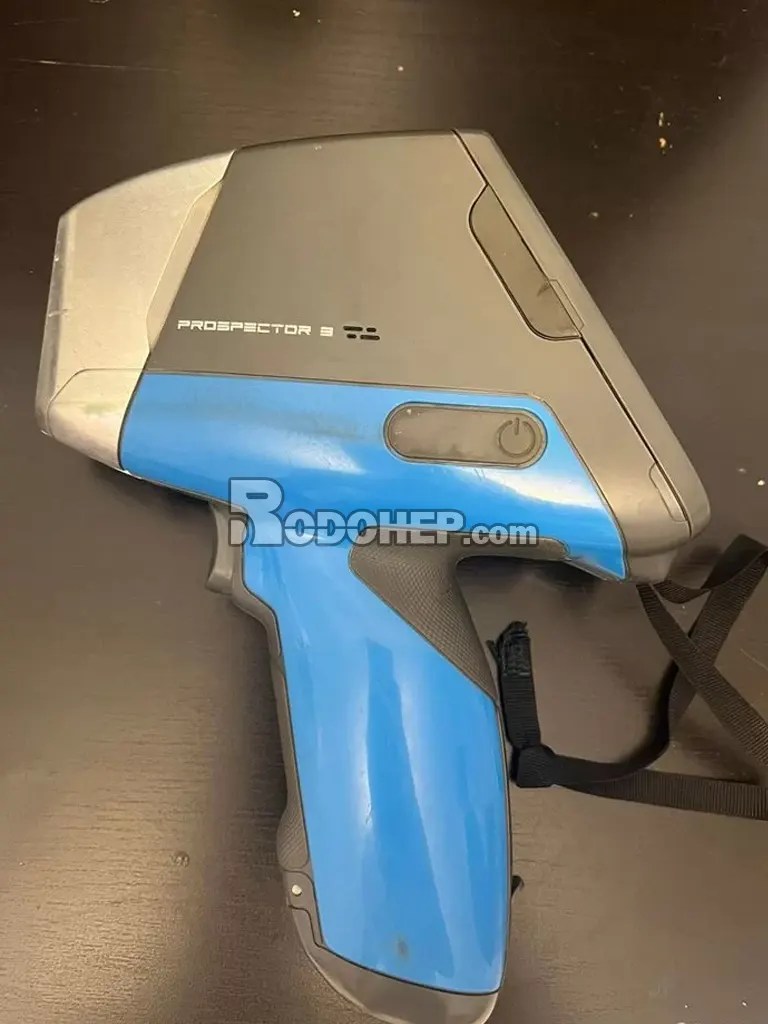

Product Details – Elvatech Prospector 3
- Manufacturer: Elvatech
- Model: Prospector 3
- Condition: Used, in great working condition and ready to use
- What’s in the box: Battery, charger, cable adapter, user’s manual, carrying case
