Description
Sciaps X-200 offers speed and performance comparable or superior to the top end analyzers from other brands. It uses a top-performing SDD combined with highly optimized X-ray tube and detector geometry. The X-200 is rapidly becoming the first choice for scrap processing and non-destructive testing due to speed and analytical performance combined with the lightweight, small form-factor design. It’s fast on every alloy family including aluminum alloys. For geochemical applications, it offers suites of elements for environmental, pathfinder, exploration, and mining. Other available apps include environmental soil, RoHS, Precious Metals, Car Catalysts, Coatings, and SciAps Empirical App for users who want to test other types of materials and generate their own calibration models. Analyzers may be factory calibrated with fundamental parameters, Compton Normalization (EPA Method 6200), or user defined empirical calibrations.
Sciaps X-200 Specifications
| X-Ray Tube
|
4 W,50 kV, Rh anode (alloy) or 50 kV Au anode (Geochem, Soil, others) |
| Detector, Rate
|
20 mm2 standard SDD and DPP. 125k cps, > 90% live |
| Power | Onboard rechargeable Li-ion battery, rechargeable inside the device or with an external charger, AC power, hot-swap capability (60s max swap time) |
| Display | 5″ color touchscreen Smartphone type display – PowerVR SGX540 3D graphic. |
| Comms/Data Transfer
|
Wifi, Bluetooth, USB. Connectivity to most devices, including SciAps ProfileBuilder PC software |
| Excitation Source
|
6-50kV, 200uA Rh anode for alloy testing, 6-50kV, 200uA Au anode for most other Apps. |
| Detector | 20mm 2 silicon drift detector (active area), 135eV resolution FWHM at 5.95Mn K-alpha line |
| X-Ray Filtering | 6 position filter wheel for beam optimization |
| Processing Electronics Host Processor
|
ARM Cortex -A9 dual-core / 1.2GHz Memory: 1GB DDR2 RAM, 1GB NAND Results Storage: 8GB SD |
| Pulse Processor
|
14-bit ADC with a digitization rate of 80 MSPS 8K channel MCA USB 2.0 for high-speed data transfer to host processor Digital Filtering implemented in FPGA for high throughput pulse processing 50nS – 24uS peaking time |
| Calibration | Fundamental parameters. For Geochem and Env. Soil Apps, users may also choose “Compton Normalization” method and/ or use empirically derived calibrations |
| Environmental Temp. Range | 10°F to 130°F at 25% duty cycle |
| Security | Password protected usage (user level) and internal settings (admin). |
| Dimensions | 7.25″ x 10.5″ x 4.5″ |
| Weight | 1.49Kgs.with battery |
Check also Sciaps X-505 XRF Analyzer

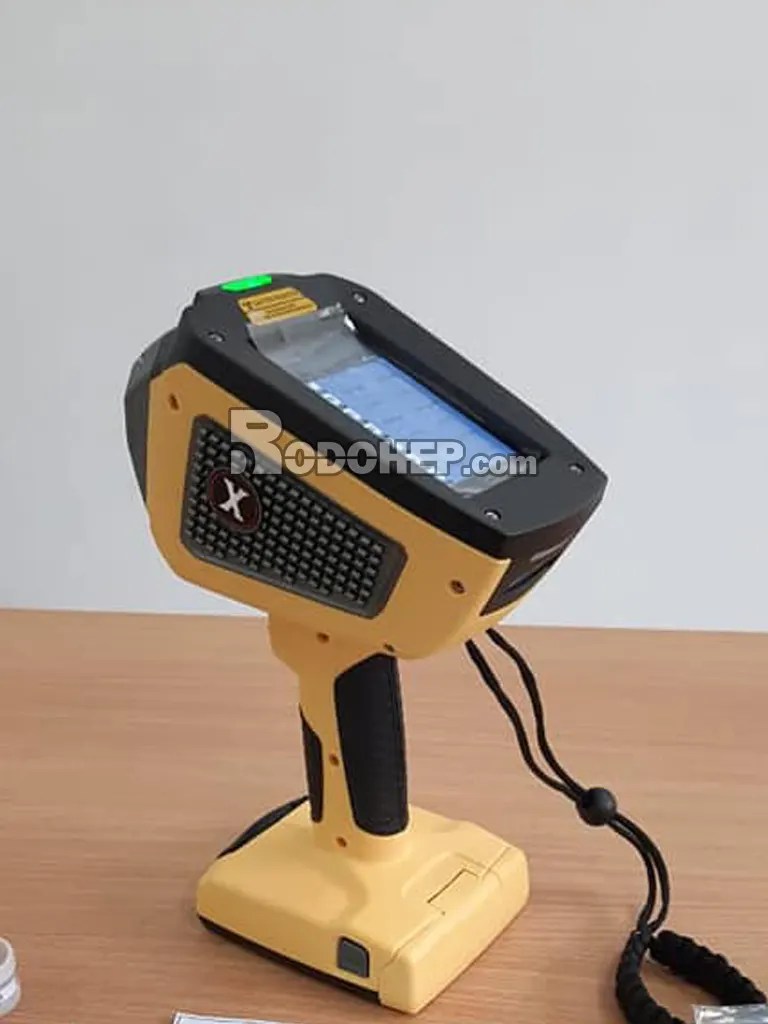

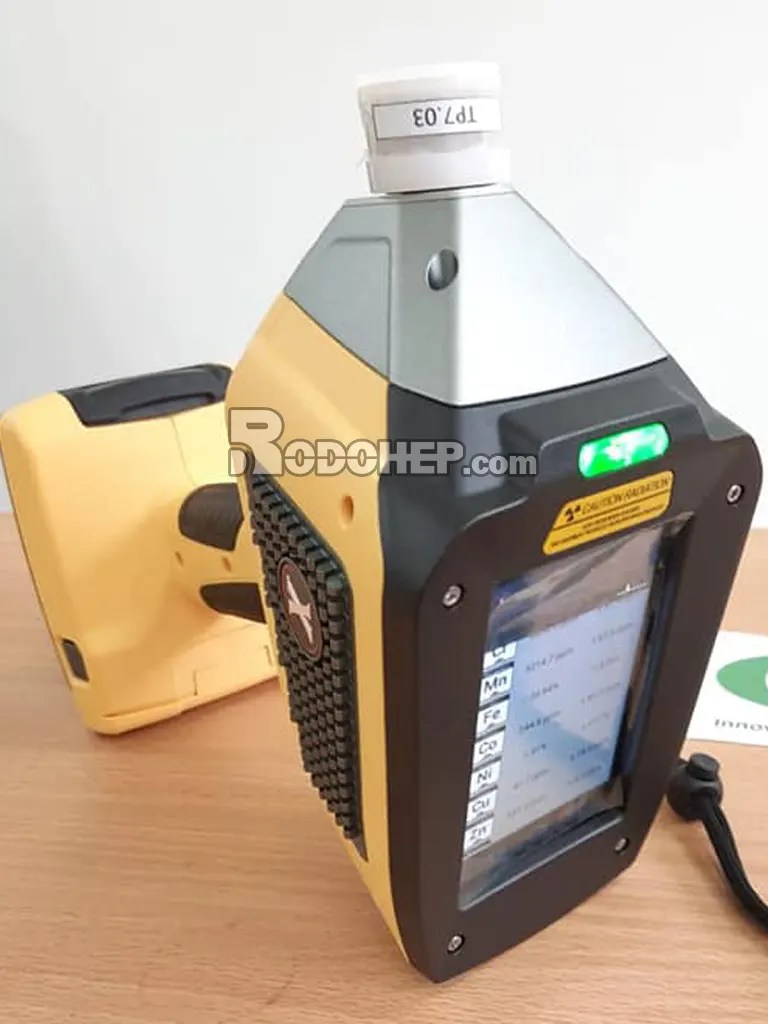

Product Details – Sciaps X-200
- Manufacturer: Sciaps
- Model: X-200
- Condition: Used, in great working condition and ready to use
- What’s in the box: 2 Li-ion batteries, Charger, USB cable, Standard ProfileBuilder software for importing, Editing alloy grade libraries (alloy App), Wrist strap, Factory start-up training and support, Lifetime free software upgrades, spare Prolene windows, carrying case
