Description

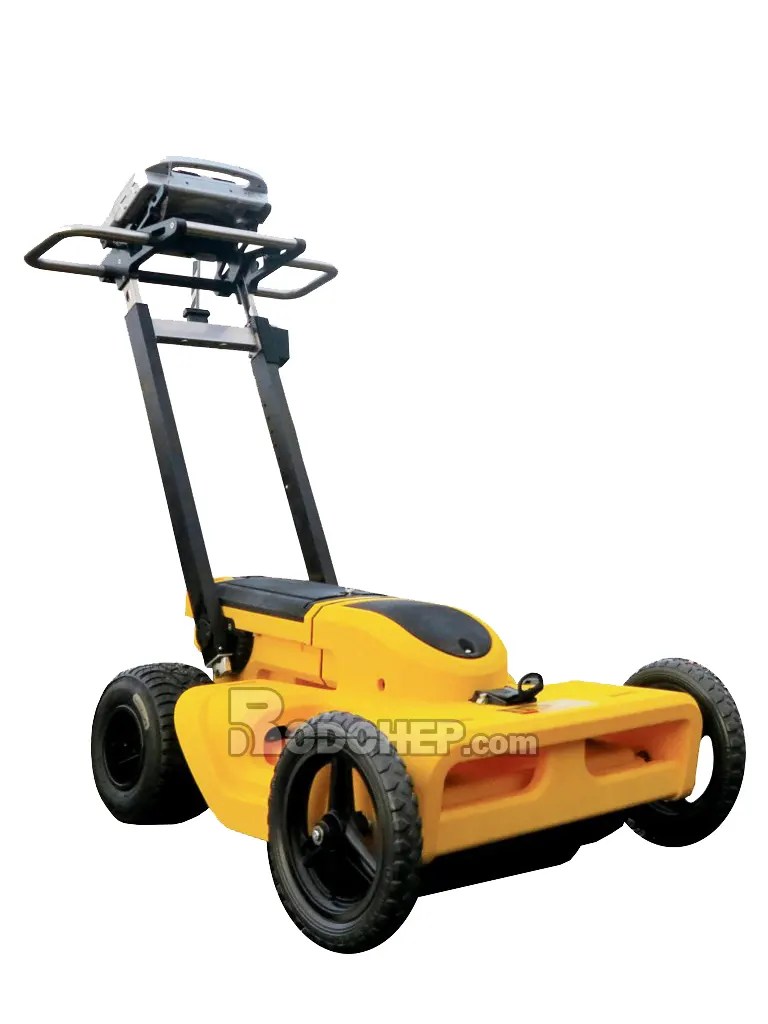

IDS Georadar Opera Duo is the most robust and intuitive GPR for locating and mapping utilities. It is a compact, easy to transport and deploy ground penetrating radar leveraging robustness, data quality and intuitiveness for unparalleled utility location and mapping.
IDS Georadar Opera Duo Main features include:
- Superior Maneuverability – A large, comfortable handle to make pushing and pulling easier, large wheels for better control and a balanced weight distribution to offer minimum resistance.
- Robustness – Engineered and built to withstand the harshest field conditions, the IDS Georadar Opera Duo is suitable for heavy use in every type of terrain.
- Data Quality – Large bandwidth offering the highest resolution; the largest dynamic range for the best penetration depth; and dual-head sensor integrating ultra-wide band antennas (250MHz and 700MHz).
- Intuitiveness – Just click the start button to receive the best performance in every soil condition. No need to perform calibration or adjust any other manual settings.
- Results Delivered On Site – The system tracks the position of the radar and marks targets automatically. All of the acquired data can be exported to CAD and GIS, and reports can be produced directly on site.
- Innovative in data processing – leverages IQMaps, the post-processing software for faster and smarter GPR data analysis.
- Remote Diagnostics Functionality – Maximize troubleshooting efficiency by transparently sharing diagnostics data via Cloud: from the on-field device to the Customer Support’s desktop.
IDS Georadar Opera Duo Specifications
| Overall Weight (PC AND Battery Not included) | 24 kg two wheels (53 lbs) 27 kg four wheels (59 lbs) |
| recommended lapt OP | Panasonic CF-h2 |
| Max. Acquistion Speed: | More than 10 kph (6 mph) |
| Power Consumption: | 13.3 W |
| Positioning: | 2 integrated encoders and/or GPS – total station |
| Scan rate Per Channel (@512 Samples/Ssan): | 381 scans/sec |
| Scan interval: | 42 scans/m |
| Power Supply : | SIA Battery 12vDC 12 Ah |
 Antenna
| Environmental | IP65 |
| Antenna Footprint | 40 x 50 cm |
| Number of Hardware Channels | 2 |
| Antenna Central Frequencies | 250 mhz and 700 mhz |
| Antenna Orientation | Perpendicular, broadside |
| Sampling Frequency | 400 khz |
