Description

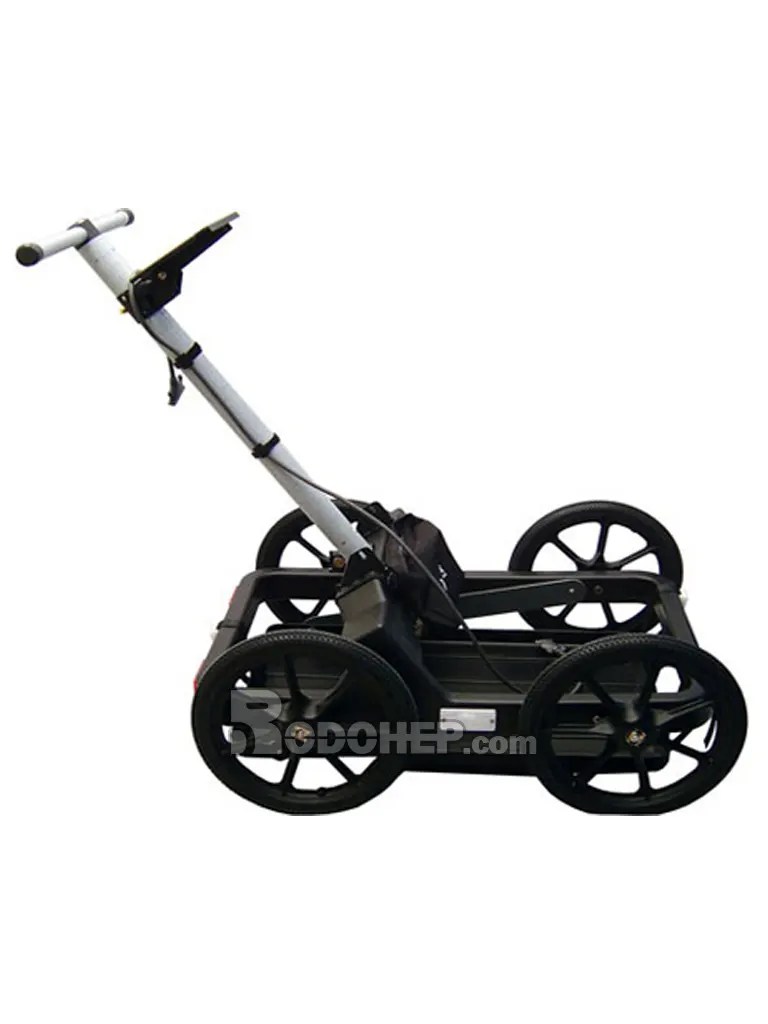

Mala Professional Explorer GPR System is a modular, full-range Ground Penetrating Radar (GPR) system designed to meet the needs of the advanced professional.

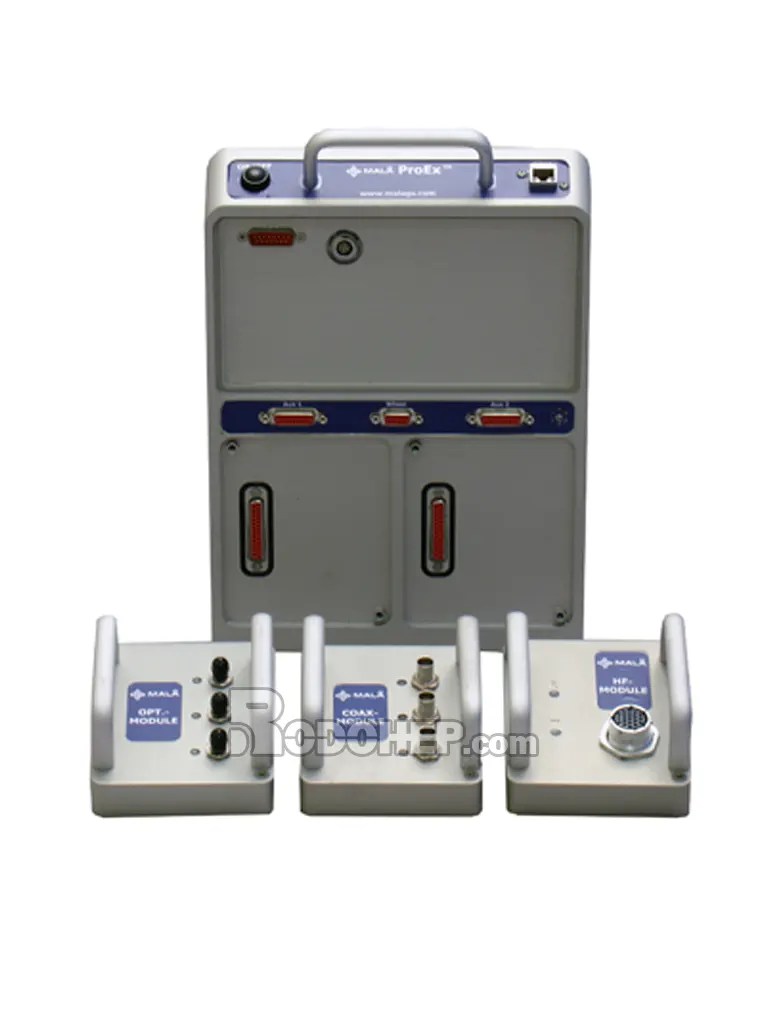

Designed on a modular platform, Mala ProEx is the most versatile control unit in the MALÅ range and replaces the world famous RAMAC/GPR CUII.
Mala Professional Explorer control unit, coupled with the MALÅ XV Monitor is compatible with a broad range of antennas and offers a flexible and versatile approach to detecting subsurface targets and geological layers accurately, efficiently and in real-time.
The Mala XV Monitor is a dedicated tool, optimized for the job at hand, i.e. the collection, handling, processing, and presentation of GPR data. The user interface has been designed to be simple, intuitive, and easy to use. Its unique dual function button allows for simple navigation.
Mala Professional Explorer Application areas
Common applications include:
- Infrastructure & Construction
- Geotechnical & Environmental
- Archaeology
- Mining & Mineral Exploration
- Military & Police
- Arctic studies
Mala Professional Explorer GPR System Specifications
| Pulse repetition freq. | 100, 200 kHz, not interleaved |
| Data bits | 16 |
| Nr. of samples/trace | 128-2048, in standard configuration, other on request |
| Nr. of stacks | 1 – 32768 and auto stacking |
| Samplings frequency | 2 – > 400 GHz |
| Signal stability | < 70 ps |
| Communication interface | Ethernet |
| Communication speed | 100 Mbit/s |
| Data transfer rate | Antenna dependent |
| Acquisition modes | Distance/time/manual |
| Power supply | 12 V MALÅ standard battery / external battery |
| Operating time | Typically 5 h, antenna dependent |
| Software | GroundVision2 or MALÅ XV Monitor |
| Antennas | All MALÅ manufactured (not HDR) |
| Wheel inputs | 1 master, 1 for each HF-unit |
| Operating temp. | -20 °C to +50 °C or 0 °F to 120 °F |
| Environmental | IP65 |
