Description
Trimble 5800 R8 provides reliability and simplicity for basic surveying tasks. You can trust that the proven design of the Trimble 5800 will perform under the toughest conditions.
Because the Trimble 5800 GPS receiver’s components are completely integrated, the system is lightweight and ergonomic—and completely cable-free. 2 MB of internal memory makes collecting data for post- processing extremely easy and efficient, whether for static or kinematic (stop-and-go) surveying.
Trimble 5800 R8 Specifications
| Measurements |
| Advanced Trimble Maxwell™ Custom Survey GPS Chip |
| High precision multiple correlator for L1 and L2 pseudorange measurements |
| Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response |
| Very low noise L1 and L2 carrier phase measurements with <1 mm precision in a 1 Hz bandwidth |
| L1 and L2 Signal-to-Noise ratios reported in dB-Hz |
| Proven Trimble low elevation tracking technology |
| 24 Channels L1 C/A Code, L1/L2 Full Cycle Carrier |
| 2 additional channels for SBAS WAAS/EGNOS support |
| Electrical |
| Power 11 to 28 V DC external power input with over-voltage protection on Port 1 (7-pin Lemo) |
| Rechargeable, removable 7.4 V, 2.4 Ah Lithium-Ion battery in internal battery compartment. Power consumption is <2.5 W, in RTK mode with internal radio. |
| Operating times on internal battery: 5.5 hours with 450 MHz receive- only (varies with temperature) |
| Certification Class B Part 15, 22, 24 FCC certification, Canadian FCC, CE Mark approval, and C-tick approval |
| Communications and Data Storage |
| 3-wire serial (7-pin Lemo) on Port 1. Full RS-232 serial on Port 2 (Dsub 9 pin) |
| Fully Integrated, fully sealed internal 450 MHz receiver |
| Fully integrated, fully sealed 2.4 GHz communications port (Bluetooth)5 |
| External cell phone support for GSM/GPRS/CDPD modems for RTK and VRS operations |
| Data storage on 2 MB internal memory: 55 hours of raw observables based on recording data from 6 satellites at 15 second intervals |
| 1 Hz, 2 Hz, 5 Hz, and 10 Hz positioning |
| CMR+, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1 Input and Output |
| 16 NMEA outputs, GSOF and RT17 outputs |
Check also Trimble R8 Model 3 Dual GPS GLONASS With TSC3 and Trimble R2 Integrated GNSS System

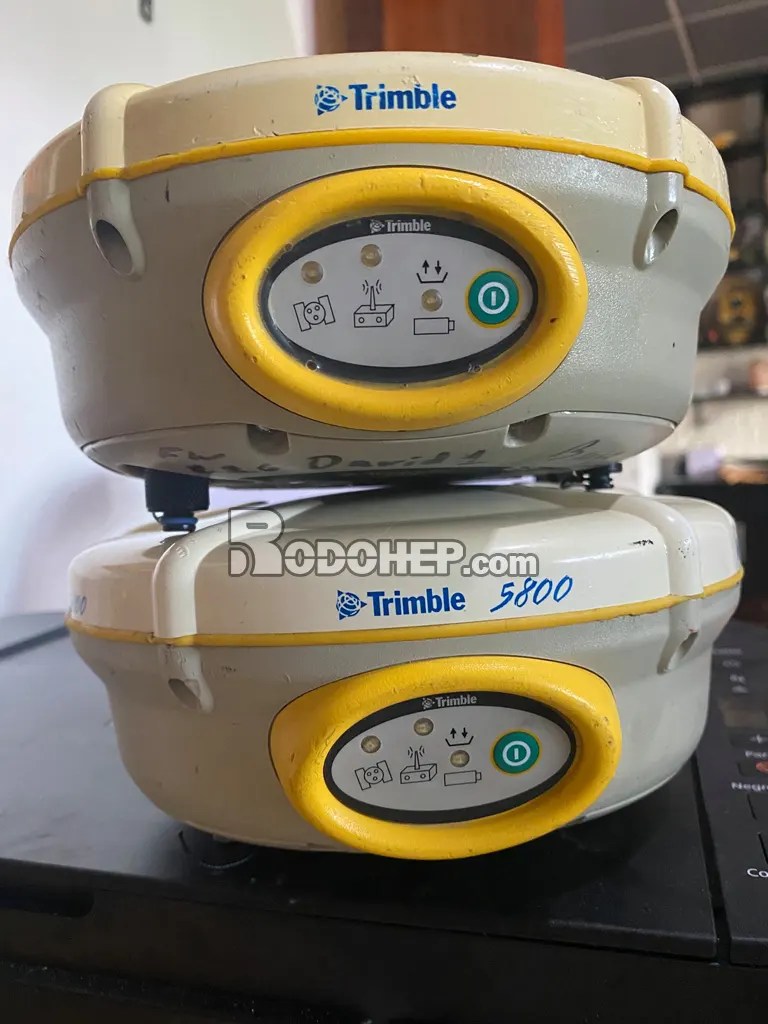

Product Details – Trimble 5800 R8
- Manufacturer: Trimble
- Model: 5800
- Condition: Used, in great working condition and ready to use

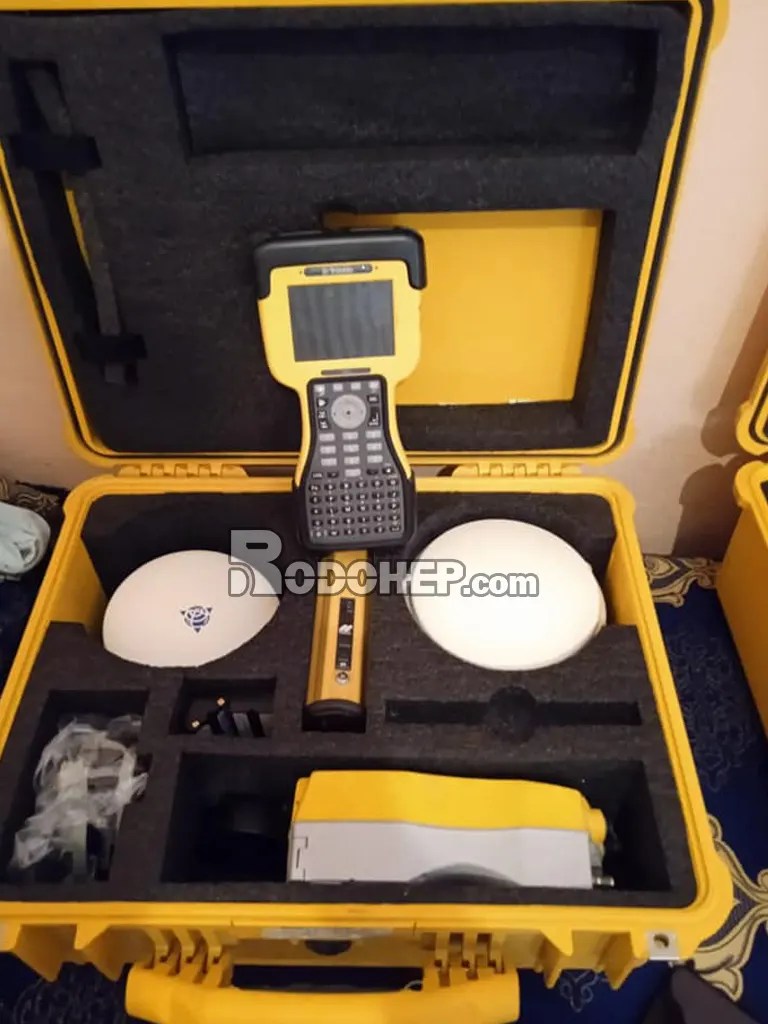

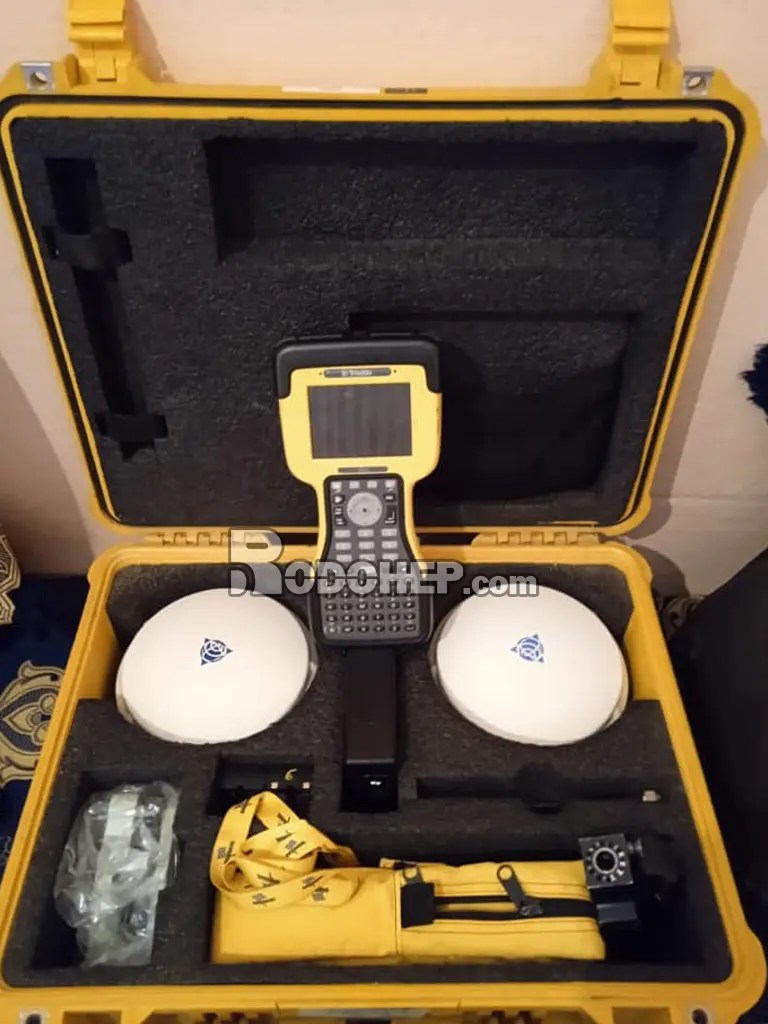

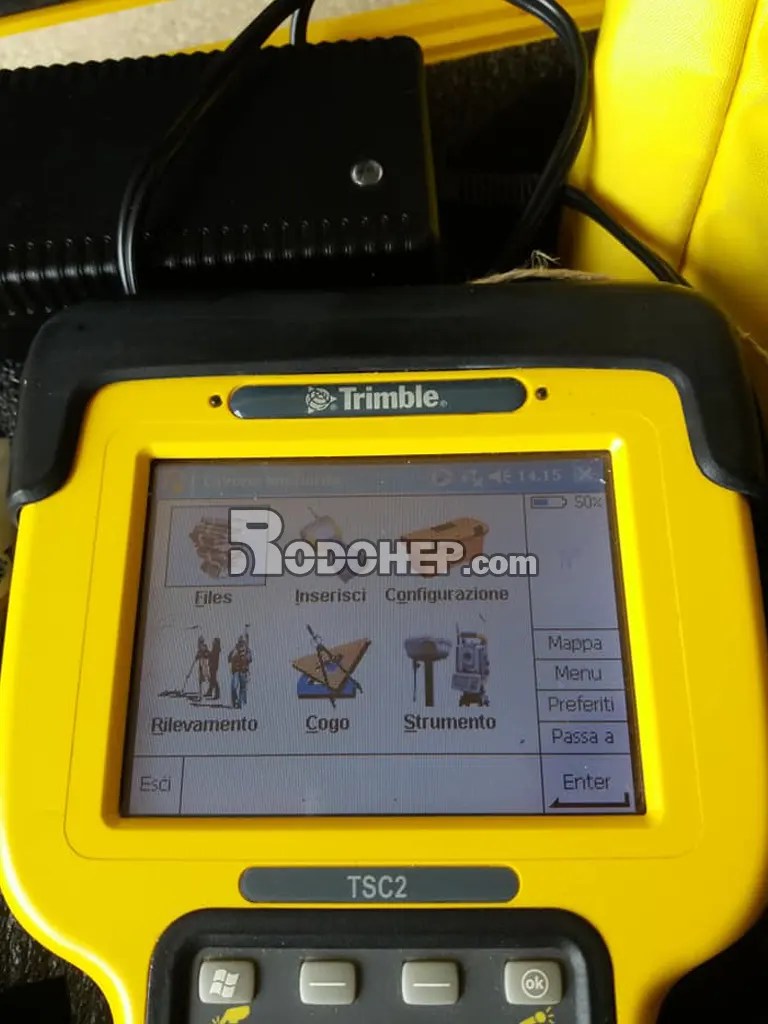

- What’s in the box: 2X Trimble Base and Rover 5800 with 450 -470Mhz internal receive radio, Trimble TSC2 with Survey Controller, 4 batteries, 2 chargers, Tripod, Pole, Tribrach and adaptor, Carrying Case
