Description
Trimble R12 is engineered for improved performance in challenging GNSS conditions. With ground-breaking signal management and rugged durability, get ready to go further than you ever thought possible.
Powered by the all-new Trimble® ProPoint™ GNSS engine, the Trimble R12 pushes the boundaries of GNSS performance. Enabling you to confidently measure in a wider range of environments, it improves performance and productivity, and empowers you to measure faster in more places than ever before. The R12 is engineered for improved performance in challenging GNSS conditions with ground-breaking signal management and rugged durability. Get ready to go further than you ever thought possible.
Trimble R12 Specifications
| HARDWARE | ||
| PHYSICALÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â | ||
| Dimensions (W×H) | 11.9 cm x 13.6 cm (4.6 in x 5.4 in) | |
| Weight | 1.12 kg (2.49 lb) with internal battery, internal radio with UHF antenna,
3.95 kg (8.71 lb) items above plus range pole, Trimble TSC7 controller & bracket |
|
| Temperature | ||
| Operating | –40 °C to +65 °C (–40 °F to +149 °F) | |
| Storage | –40 °C to +75 °C (–40 °F to +167 °F) | |
| Humidity | 100%, condensing | |
| Ingress protection | IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28 ft) | |
| Shock and vibration (Tested and meets the following environmental standards) | ||
| Shock | Non-operating: Designed to survive a 2 m (6.6 ft) pole drop onto concrete. Operating: to 40 G, 10 msec, sawtooth | |
| Vibration | MIL-STD-810F, FIG.514.5C-1 | |
| ELECTRICAL | ||
| Power 11 to 24 V DC external power input with over-voltage protection on Port 1 and Port 2 (7-pin Lemo) Rechargeable, removable 7.4 V, 3.7 Ah Lithium-ion smart battery with LED status indicators Power consumption is 4.2 W in RTK rover mode with internal radio11 | ||
| Operating times on internal battery | ||
| 450 MHz receive only option 6.5 hours
450 MHz receive/transmit option (0.5 W) 6.0 hours Cellular receive option 6.5 hours 450 MHz receive/transmit option (2.0 W) 5.5 hours |
||
| COMMUNICATIONS AND DATA STORAGE | ||
| Serial | 3-wire serial (7-pin Lemo) | |
| USB v2.0 | Supports data download and high speed communications | |
| Bluetooth | Fully integrated, fully sealed 2.4 GHz communications port (Bluetooth) | |
| Wi-Fi | 802.11 b,g, access point and client mode, WPA/WPA2/WEP64/WEP128 encryption | |
| I/O ports | Serial, USB, TCP/IP, IBSS/NTRIP, Bluetooth | |
| Data storage | 6 GB internal memory | |
| Data format | CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 input and output | |
Check also Trimble R8 Model 3 Dual GPS GLONASS With TSC3
Product Details – Trimble R12
- Manufacturer: Trimble
- Model: R12
- Condition: New

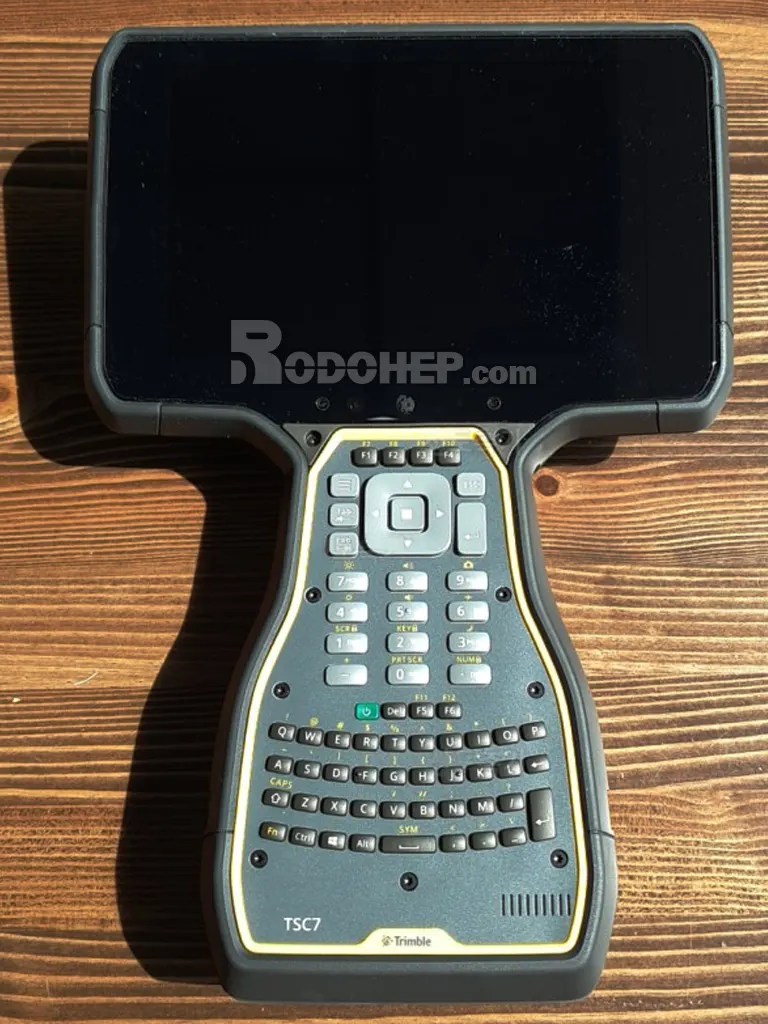

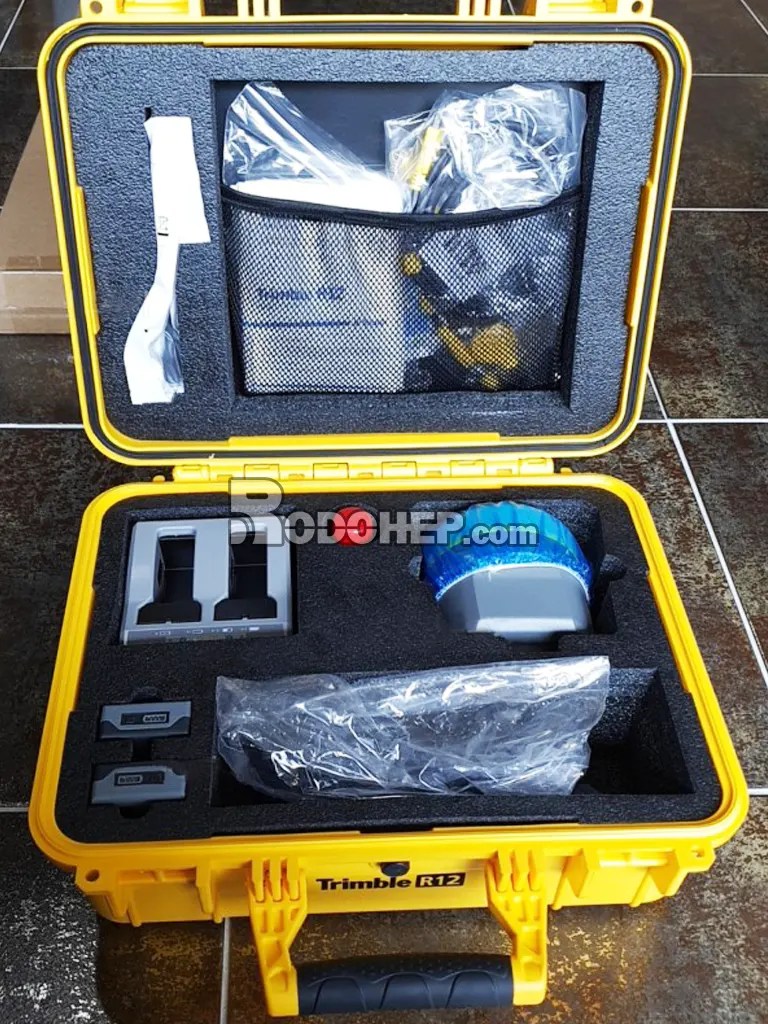

- What’s in the box: Trimble R12, TSC7 Field Collector, 2 X batteries, 2 X chargers, cables, quick start guide, Transport case
